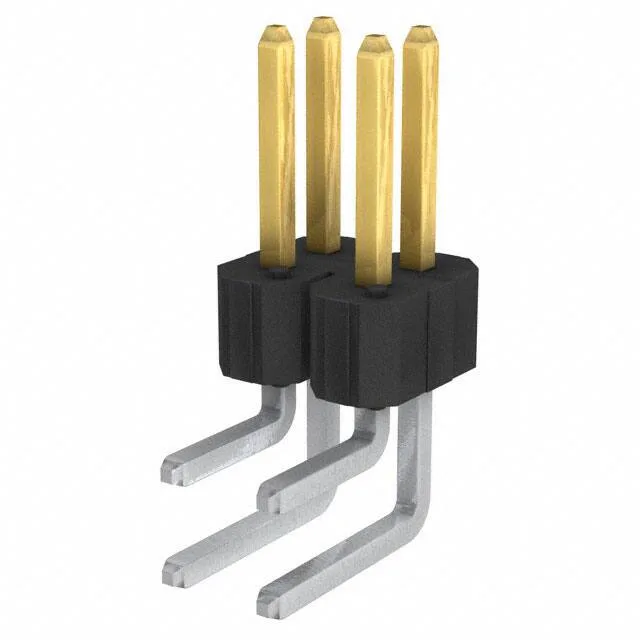

The Amphenol 68697-104HLF is a 4-position, dual-row BERGSTIK® II unshrouded header on 0.100" (2.54mm) pitch — a standard board-to-board interconnect for parallel PCB stacking or wire-to-board via a mating receptacle. The 30.0 µ" gold or GXT™ plating on the mating surface handles repeated insertion cycles without contact fretting, and the phosphor bronze contacts are rated 5 A per circuit at the listed voltage rating of 110 V.
Right-angle routing and board footprint
The 0.100" pitch and 0.100" row spacing give a standard 4-pin, 2-row footprint — 0.230" mating pin length and 0.125" solder post length.
Plating and current capacity
The 5 A per-contact rating is conservative for the phosphor bronze beam; the real limit is temperature rise in the housing, which carries a UL94 V-0 flammability rating for equipment inside enclosures.
