72-Position Unshrouded Header for Dense Board-to-Board Links
Footprint and Mating Half Compatibility
The through-hole termination anchors the pins during wave solder, and the square pin shape provides a positive grip in the receptacle contact.

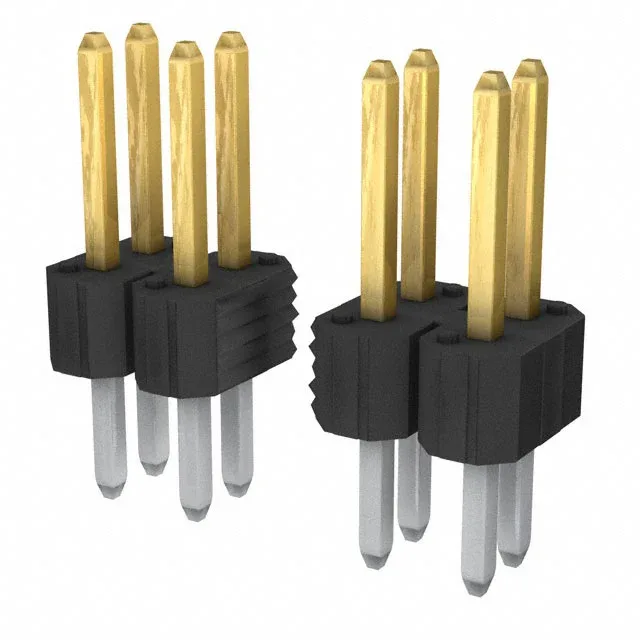

68739-172HLF BergStik II Header, 72-Pos, 0.100" Pitch, Gold
MPN68739-172HLF
Active
Amphenol ICC (FCI) BergStik® II, 72-position unshrouded header, 0.100" (2.54 mm) pitch, through-hole solder termination, 3 A per contact, 30 µinch gold mating finish.
$8.0352Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Aug 2026
Specifications
| Parameter | Value |
|---|---|
| Series | BERGSTIK® II |
| Type | Male Pin |
| Mounting | Through Hole |
| Connector type | Header |
| Fastening type | Push-Pull |
| Current rating | 3A |
| Operating temperature | -65°C~130°C |
| Contact material | Phosphor Bronze |
| Insulation color | Black |
| Insulation height | 0.100\" (2.54mm) |
| Material flammability rating | UL94 V-0 |
| Style | Board to Board |
All specifications
| Parameter | Value |
|---|---|
| Package | Bulk |
| Shrouding | Unshrouded |
| Termination | Solder |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 72 |
| Row spacing - mating | 0.100\" (2.54mm) |
| Contact length - post | 0.156\" (3.96mm) |
| Overall contact length | 0.486\" (12.34mm) |
| Contact finish - mating | Gold or Gold, GXT™ |
| Contact length - mating | 0.230\" (5.84mm) |
| Contact finish thickness - mating | 30.0µin (0.76µm) |
Product details
Frequently asked questions
What mates with the 68739-172HLF header?
Any BergStik II dual-row receptacle or IDC socket with 72 positions and 0.100" pitch. The unshrouded header accepts standard female socket strips from the same series.
What is the current rating per pin?
3 A per contact, rated at the operating temperature range. The 30 µinch gold finish keeps contact resistance stable over repeated mating cycles.
