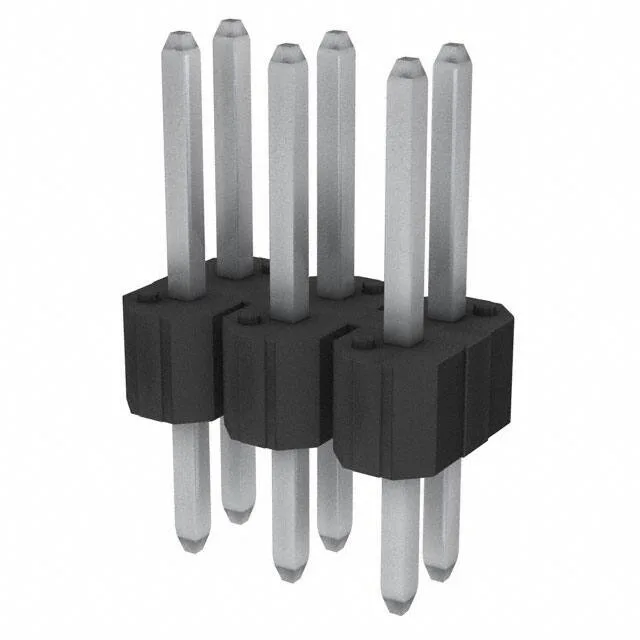

Amphenol ICC (FCI) BERGSTIK II header, order code 68739-406HLF, 6 positions, dual row, 0.100" (2.54mm) pitch, 3A, tin-plated mating contacts, through-hole, solder termination.
| Parameter | Value |
|---|---|
| Series | BERGSTIK® II |
| Type | Male Pin |
| Mounting | Through Hole |
| Connector type | Header |
| Fastening type | Push-Pull |
| Current rating | 3A |
| Operating temperature | -65°C~130°C |
| Contact material | Phosphor Bronze |
| Insulation color | Black |
| Insulation height | 0.100\" (2.54mm) |
| Material flammability rating | UL94 V-0 |
| Style | Board to Board |
| Parameter | Value |
|---|---|
| Package | Bag |
| Shrouding | Unshrouded |
| Termination | Solder |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 6 |
| Row spacing - mating | 0.100\" (2.54mm) |
| Contact finish - post | Tin |
| Contact length - post | 0.156\" (3.96mm) |
| Overall contact length | 0.486\" (12.34mm) |
| Contact finish - mating | Tin |
| Contact length - mating | 0.230\" (5.84mm) |
| Contact finish thickness - mating | 100.0µin (2.54µm) |
The 68739-406HLF is the 6-position member of Amphenol ICC (FCI)'s BERGSTIK II unshrouded header line, dual-row, 0.100" (2.54mm) pitch. Tin-plated mating contacts rated 3A per circuit, through-hole solder termination, UL94 V-0 black insulation.
The insulation carries UL94 V-0 flammability rating. RoHS and REACH compliance documentation is available from the manufacturer upon request.
