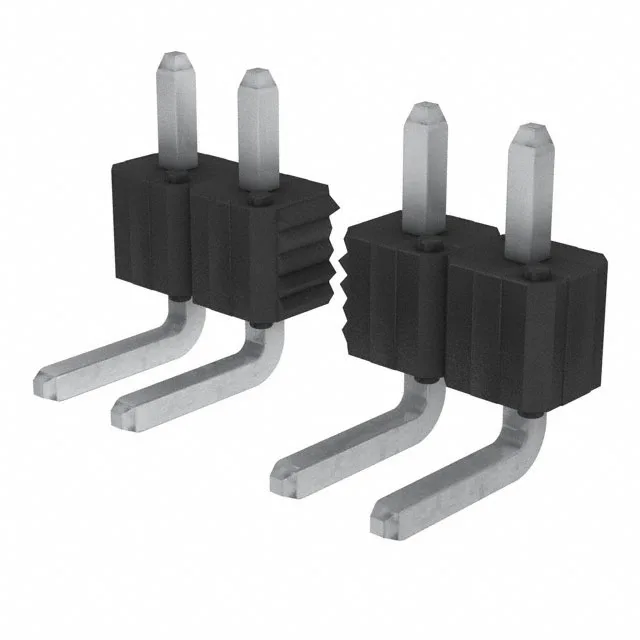

Amphenol ICC (FCI) BERGSTIK® II unshrouded header, 36 positions, 0.100" (2.54mm) pitch, through hole right angle, tin-plated male pins, rated 3A per contact.
| Parameter | Value |
|---|---|
| Series | BERGSTIK® II |
| Type | Male Pin |
| Mounting | Through Hole, Right Angle |
| Connector type | Header |
| Fastening type | Push-Pull |
| Current rating | 3A |
| Operating temperature | -65°C~125°C |
| Contact material | Phosphor Bronze |
| Insulation color | Black |
| Insulation height | 0.095\" (2.41mm) |
| Material flammability rating | UL94 V-0 |
| Style | Board to Board |
| Parameter | Value |
|---|---|
| Package | Bag |
| Shrouding | Unshrouded |
| Termination | Solder |
| Contact shape | Square |
| Rows | 1 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 36 |
| Contact finish - post | Tin |
| Contact length - post | 0.120\" (3.05mm) |
| Contact finish - mating | Tin |
| Contact length - mating | 0.100\" (2.54mm) |
| Contact finish thickness - mating | 100.0µin (2.54µm) |
The 68764-436HLF: The 36 positions are all loaded, so the board footprint must accommodate the full row length.
The contact material is phosphor bronze, which offers good spring properties and corrosion resistance for the current rating.
In high-vibration environments, a shrouded header with a locking ramp is preferred — this part is better suited for low-vibration, bench-level or enclosure-internal connections.
36 positions, all loaded.
0.100" (2.54mm).
The suffix 'HLF' indicates a different plating or packaging variant within the BERGSTIK II series. The base 36-position, 0.100" pitch, right-angle configuration is shared.
The unshrouded, push-pull design offers limited vibration resistance. For high-vibration environments, consider a shrouded header with a locking latch.
