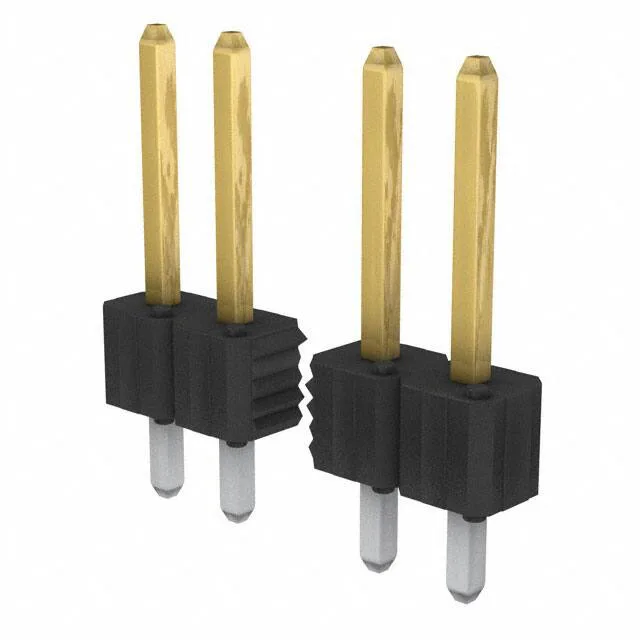

Amphenol ICC (FCI) BergStik® II header, order code 68771-136HLF, 36 positions, single row, 0.100" (2.54 mm) pitch, 3 A, gold or GXT™ mating finish, through-hole, solder termination.
| Parameter | Value |
|---|---|
| Series | BERGSTIK® II |
| Type | Male Pin |
| Mounting | Through Hole |
| Connector type | Header |
| Fastening type | Push-Pull |
| Current rating | 3A |
| Operating temperature | -65°C~125°C |
| Contact material | Phosphor Bronze |
| Insulation color | Black |
| Insulation height | 0.100\" (2.54mm) |
| Material flammability rating | UL94 V-0 |
| Style | Board to Board |
| Parameter | Value |
|---|---|
| Package | Bulk |
| Shrouding | Unshrouded |
| Termination | Solder |
| Contact shape | Square |
| Rows | 1 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 36 |
| Contact length - post | 0.100\" (2.54mm) |
| Overall contact length | 0.470\" (11.94mm) |
| Contact finish - mating | Gold or Gold, GXT™ |
| Contact length - mating | 0.270\" (6.86mm) |
| Contact finish thickness - mating | 30.0µin (0.76µm) |
The 68771-136HLF is the 36-position single-row member of the BergStik II header line, unshrouded with a push-pull fastening system.
An unshrouded header exposes the pin tips for direct board-to-board stacking or mating with a receptacle — the push-pull retention relies on the mating half's latch, not a shell.
RoHS and REACH compliance documentation is available from the manufacturer.
