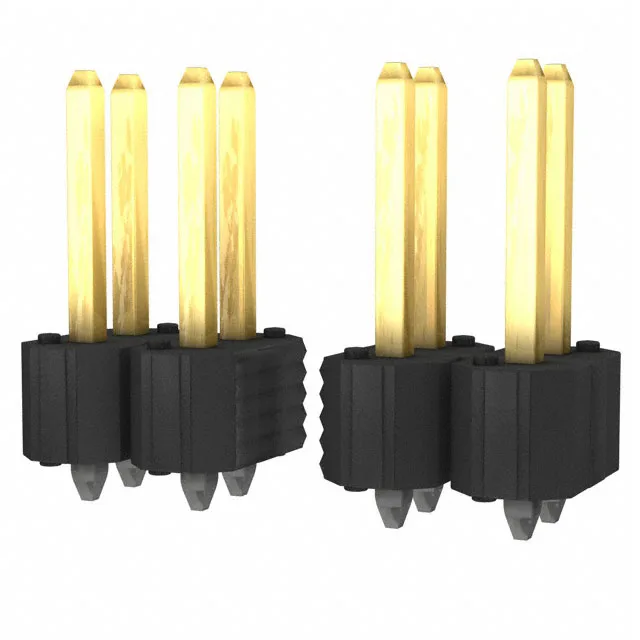

Amphenol BERGSTIK® II header, order code 68783-116HLF, 16 positions, dual row, 0.100" (2.54mm) pitch, gold or GXT™ mating contact finish, through-hole, solder termination, unshrouded, push-pull fastening.
| Parameter | Value |
|---|---|
| Series | BERGSTIK® II |
| Type | Male Pin |
| Mounting | Through Hole |
| Connector type | Header |
| Fastening type | Push-Pull |
| Contact material | Phosphor Bronze |
| Insulation color | Black |
| Insulation height | 0.100\" (2.54mm) |
| Material flammability rating | UL94 V-0 |
| Style | Board to Board |
| Package | Bulk |
| Shrouding | Unshrouded |
| Parameter | Value |
|---|---|
| Termination | Solder |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 16 |
| Row spacing - mating | 0.100\" (2.54mm) |
| Contact length - post | 0.045\" (1.14mm) |
| Overall contact length | 0.375\" (9.53mm) |
| Contact finish - mating | Gold or Gold, GXT™ |
| Contact length - mating | 0.230\" (5.84mm) |
| Contact finish thickness - mating | 30.0µin (0.76µm) |
The 68783-116HLF is the 16-circuit member of Amphenol's BERGSTIK II through-hole header line, unshrouded with push-pull fastening.
No pin-compatible drop-in replacement from the original manufacturer — a board spin is required for any functional alternative.
