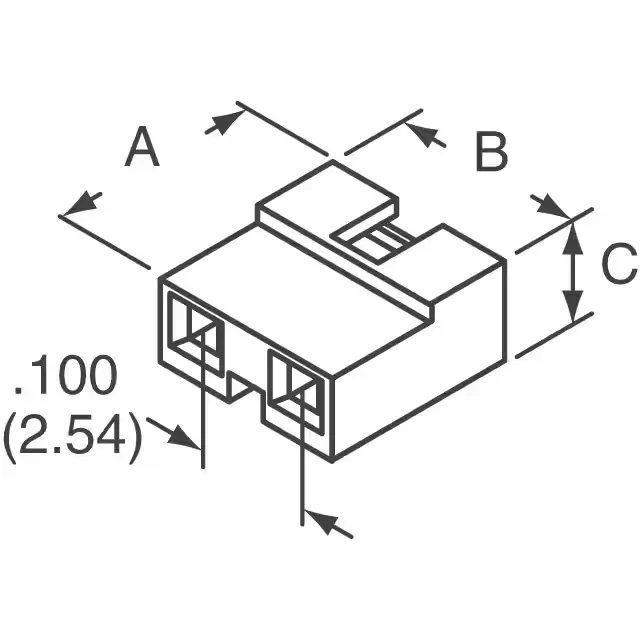

2-Position Open-Top Shunt at 0.100" Pitch
The 68786-202LF: The open-top design lets you probe or jumper the pair without removing the shunt — useful for configuration headers where you need to change settings during board bring-up or field rework.
The base product number is 68786; the -202LF suffix indicates the gold-plated version with the low-profile open-top configuration.
Board Fit and Mating
Mates with any 0.100" (2.54mm) square-pin header, two pins in a single row. The female sockets slide over the pins and the open top gives access to the pin tips for probing or daisy-chaining. No secondary lock — the interference fit holds the shunt in place. For a harness builder: this is a jumper, not a wire-to-board connector. It ships as a single piece, no crimp terminals or separate housing needed. The gold contact finish means it can be cycled hundreds of times without the contact resistance drifting — useful for configuration headers that get changed during production test.
