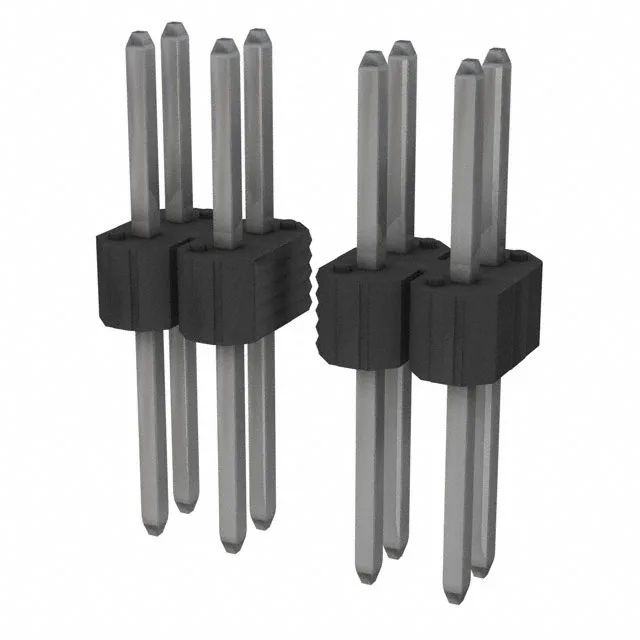

69133-458HLF — Amphenol product photo
Amphenol

69133-458HLF BERGSTIK II Header, 58 Pos, 0.100" Pitch

MPN69133-458HLF
Active

Amphenol BERGSTIK® II header, order code 69133-458HLF, 58 positions, dual row, 0.100" (2.54 mm) pitch, 3 A, tin-plated mating contacts, through-hole, solder termination.

$5.2985Ref. price · indicative, final on quote
69133-458HLF datasheet
StockContact for availability
Lead timeIn Stock wk
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

69133-458HLF Technical Specifications
ParameterValue
SeriesBERGSTIK® II
GenderMale Pin
Mounting typeThrough Hole
Connector typeHeader
Fastening typePush-Pull
Current rating3A
Operating temperature-65°C~130°C
Contact materialPhosphor Bronze
Insulation colorBlack
Insulation height0.100\" (2.54mm)
Material flammability ratingUL94 V-0
StyleBoard to Board
PackageBag
ShroudingUnshrouded
TerminationSolder
Contact shapeSquare
Rows2
Pitch0.100\" (2.54mm)
Positions58
Row spacing - mating0.100\" (2.54mm)
Contact finish - postTin
Contact length - post0.285\" (7.24mm)
Overall contact length0.615\" (15.62mm)
Contact finish - matingTin
Contact length - mating0.230\" (5.84mm)
Contact finish thickness - mating100.0µin (2.54µm)

Product details

Board-to-board unshrouded header, 58 positions

The 69133-458HLF is the 58-circuit member of Amphenol's BERGSTIK II unshrouded header line, arranged in a dual-row configuration at 0.100" (2.54 mm) pitch. Tin-plated mating contacts rated 3 A per circuit, with a push-pull fastening interface and through-hole solder termination.

Selection notes for the 69133-458HLF

The unshrouded design and 0.100" row spacing let the header sit flush against the board edge for parallel stacking; the UL94 V-0 rated black housing supports the temperature range of -65°C to 130°C.
