Board-to-board unshrouded header, 36 circuits
The 69152-436HLF: Tin-plated mating contacts rated for general-purpose signal duty; the through-hole solder termination and UL94 V-0 black housing suit standard PCB assembly.

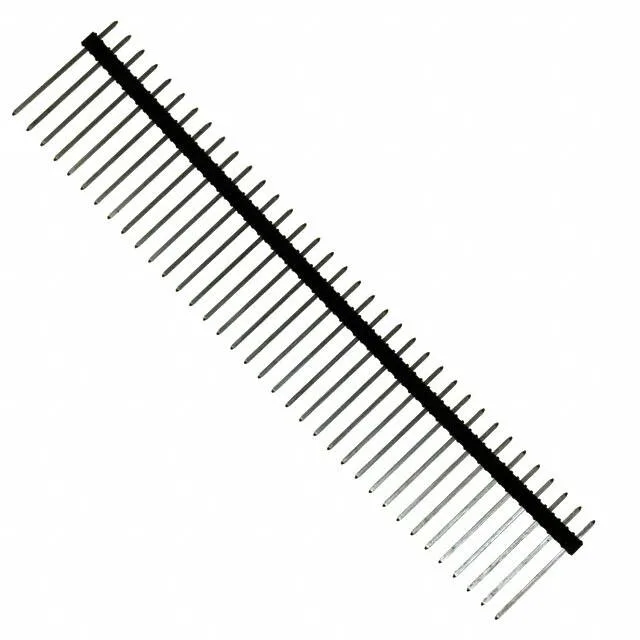

69152-436HLF Amphenol ICC (FCI) BERGSTIK II Header, 36 Pos
MPN69152-436HLF
Obsolete
Amphenol ICC (FCI) BERGSTIK II header, order code 69152-436HLF, 36 positions, single row, 0.100" (2.54mm) pitch, tin-plated mating contacts, through-hole solder termination, UL94 V-0.
$6.1226Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | BERGSTIK® II |
| Type | Male Pin |
| Mounting | Through Hole |
| Connector type | Header |
| Fastening type | Push-Pull |
| Contact material | Phosphor Bronze |
| Insulation color | Black |
| Insulation height | 0.100\" (2.54mm) |
| Material flammability rating | UL94 V-0 |
| Style | Board to Board |
| Package | Bulk |
| Shrouding | Unshrouded |
All specifications
| Parameter | Value |
|---|---|
| Termination | Solder |
| Contact shape | Square |
| Rows | 1 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 36 |
| Contact finish - post | Tin |
| Contact length - post | 0.120\" (3.05mm) |
| Overall contact length | 0.720\" (18.29mm) |
| Contact finish - mating | Tin |
| Contact length - mating | 0.500\" (12.70mm) |
| Contact finish thickness - mating | 100.0µin (2.54µm) |
