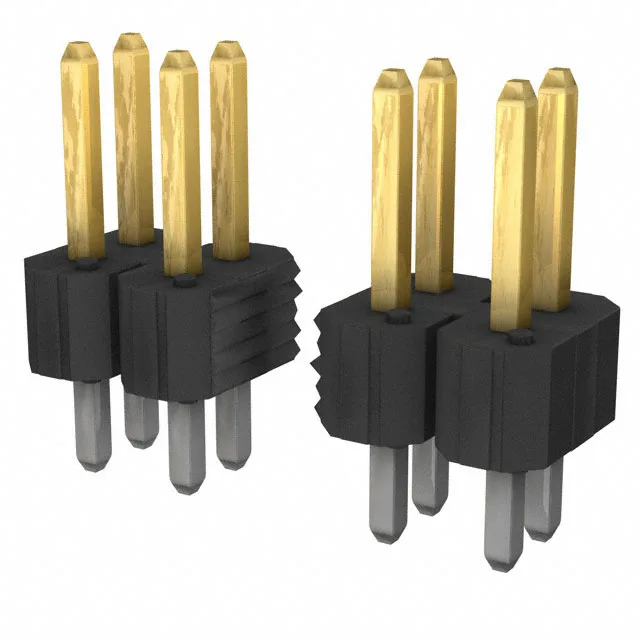

Amphenol ICC (FCI) BERGSTIK® II, 69157-372HLF, unshrouded male pin header, 72 circuits, 2 rows, 0.100" (2.54 mm) pitch, through-hole solder termination, 3 A per contact, 50 µinch gold mating finish, UL94 V-0 black housing.
| Parameter | Value |
|---|---|
| Series | BERGSTIK® II |
| Type | Male Pin |
| Mounting | Through Hole |
| Connector type | Header |
| Fastening type | Push-Pull |
| Current rating | 3A |
| Operating temperature | -65°C ~ 130°C |
| Contact material | Phosphor Bronze |
| Insulation color | Black |
| Insulation height | 0.100\" (2.54mm) |
| Material flammability rating | UL94 V-0 |
| Style | Board to Board |
| Parameter | Value |
|---|---|
| Package | Bag |
| Shrouding | Unshrouded |
| Termination | Solder |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 72 |
| Row spacing - mating | 0.100\" (2.54mm) |
| Contact length - post | 0.110\" (2.79mm) |
| Overall contact length | 0.410\" (10.41mm) |
| Contact finish - mating | Gold or Gold, GXT™ |
| Contact length - mating | 0.200\" (5.08mm) |
| Contact finish thickness - mating | 50.0µin (1.27µm) |
Available through independent distribution channels. Pricing and lead time are quoted per BOM line against current market availability.
For a board-to-board header that sees occasional rework or field replacement, this plating margin prevents contact resistance drift over the product lifetime.
The mating pitch is 0.100" (2.54 mm) between centres, with the same 0.100" row spacing. This is the standard 0.100-inch grid used across the BERGSTIK II series.
Sourced through independent distribution channels. Availability and pricing are confirmed at RFQ against the specific BOM quantity – no stock-holding claim is made on this page.
