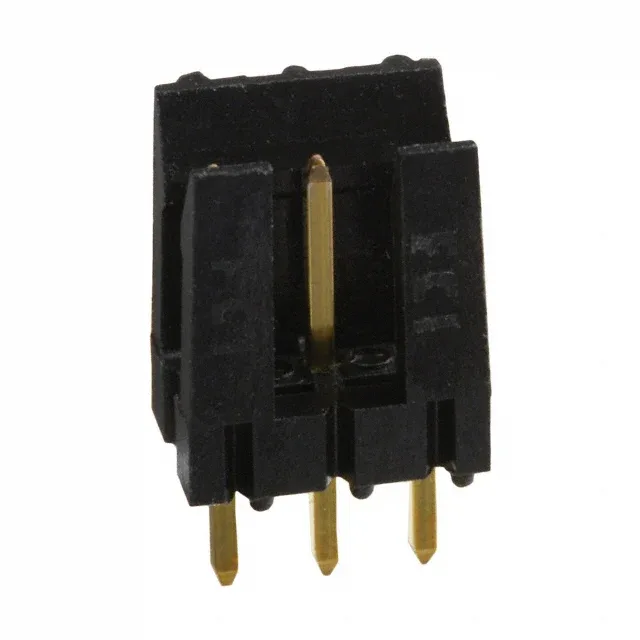

Amphenol ICC (FCI) Mini-PV™, Basics+ header, 3 positions, 0.100" (2.54mm) pitch, single-row, shrouded - 2 wall, through-hole solder, friction lock, 30.0µin gold male pins.
| Parameter | Value |
|---|---|
| Series | Mini-PV™, Basics+ |
| Type | Male Pin |
| Mounting | Through Hole |
| Connector type | Header |
| Fastening type | Friction Lock |
| Contact material | Phosphor Bronze |
| Insulation color | Black |
| Insulation height | 0.386\" (9.80mm) |
| Material flammability rating | UL94 V-0 |
| Style | Board to Cable/Wire |
| Package | Bulk |
| Shrouding | Shrouded - 2 Wall |
| Parameter | Value |
|---|---|
| Termination | Solder |
| Contact shape | Square |
| Rows | 1 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 3 |
| Contact length - post | 0.120\" (3.05mm) |
| Overall contact length | 0.465\" (11.81mm) |
| Contact finish - mating | Gold or Gold, GXT™ |
| Contact length - mating | 0.230\" (5.84mm) |
| Contact finish thickness - mating | 30.0µin (0.76µm) |
The 69167-103: It mates with Mini-PV™ receptacle housings for board-to-cable/wire applications.
The closest peer is the 69167-104 (4 positions), which shares the same 0.100" pitch, single-row layout, friction lock, and 30.0µin gold finish. The only difference is circuit count — 3 vs 4. If your BOM calls for 4 positions, the 69167-104 is a drop-in replacement; no footprint or mating-half change.
The 69167-103 is a stocked line item in our distribution network. Submit an RFQ through the page and we'll respond with a commercial offer.
No — the 69167-103 is listed as RoHS non-compliant. Confirm your application's regulatory exemption before ordering.
The 69167-104 has 4 positions instead of 3. Both share the same 0.100" pitch, single-row layout, friction lock, and 30.0µin gold finish. If your BOM needs 4 circuits, the 69167-104 is a direct swap.
