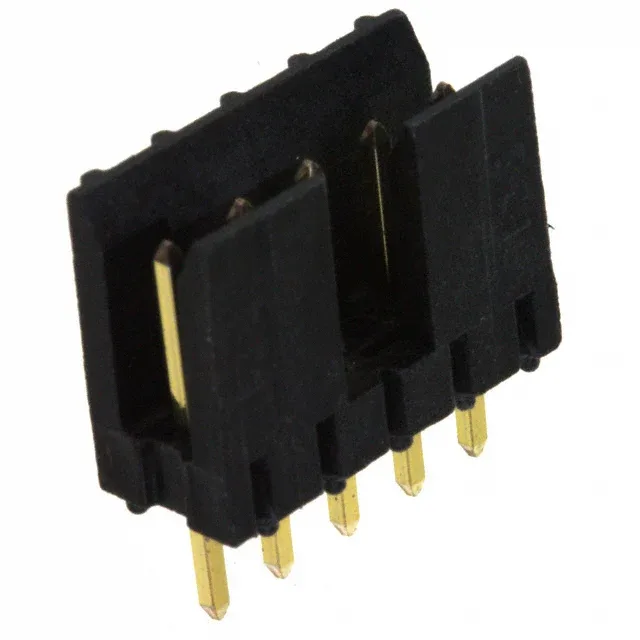

69167-105HLF Amphenol ICC (FCI) Mini-PV Header 5-Pos 2.54mm

MPN69167-105HLF
Active

Amphenol ICC (FCI) Mini-PV™, Basics+ header, 5 positions, 0.100" (2.54mm) pitch, vertical through-hole, shrouded 2-wall with friction lock, 30.0µin gold or GXT™ plating on square male pins.

$1.2000Ref. price · indicative, final on quote
69167-105HLF datasheet
StockContact for availability
Lead timeIn Stock wk
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

69167-105HLF Technical Specifications
ParameterValue
SeriesMini-PV™, Basics+
GenderMale Pin
Mounting typeThrough Hole
Connector typeHeader
Fastening typeFriction Lock
Contact materialPhosphor Bronze
Insulation colorBlack
Insulation height0.386\" (9.80mm)
Material flammability ratingUL94 V-0
StyleBoard to Cable/Wire
PackageBulk
ShroudingShrouded - 2 Wall
TerminationSolder
Contact shapeSquare
Rows1
Pitch0.100\" (2.54mm)
Positions5
Contact length - post0.120\" (3.05mm)
Overall contact length0.465\" (11.81mm)
Contact finish - matingGold or Gold, GXT™
Contact length - mating0.230\" (5.84mm)
Contact finish thickness - mating30.0µin (0.76µm)

Product details

5-Position Vertical Header with Friction Lock

Termination is solder via through-hole mounting. Overall contact length is 0.465" (11.81mm). The header stands 0.386" (9.80mm) above the board surface (insulation height). This z-height matters when routing cables under a cover or in a tight enclosure. The square male pins (phosphor bronze) provide reliable contact with the receptacle's female terminals.

Sourced through independent distribution channels.

Peer Comparison: Position Count Options

The same series includes 4-position (69167-104HLF) and 6-position (69167-106) versions.
