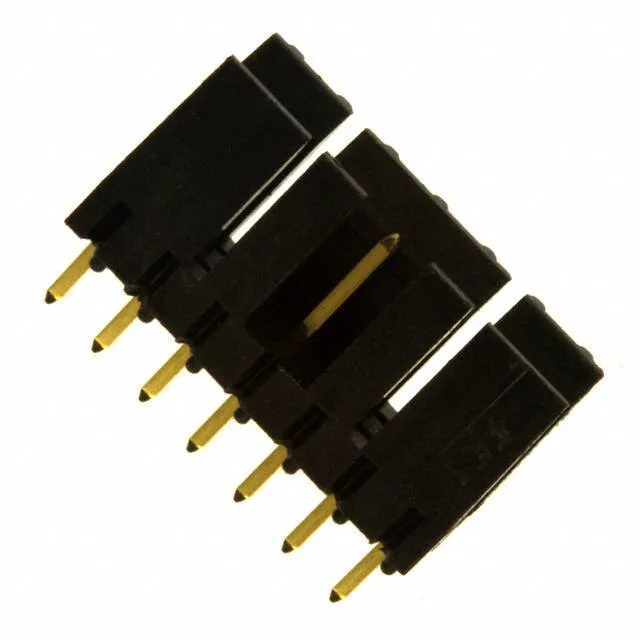

69167-107HLF — Amphenol product photo
Amphenol

69167-107HLF Amphenol ICC (FCI) 7-Pin Header, 0.100" Pitch

MPN69167-107HLF
Active

Amphenol ICC (FCI) Mini-PV™, Basics+ series, 69167-107HLF — board-to-cable/wire header, 7 positions, single row, 0.100" (2.54mm) pitch, shrouded 2-wall, friction lock, through-hole solder, 30 µinch gold or GXT™ mating finish.

$1.4900Ref. price · indicative, final on quote
69167-107HLF datasheet
StockContact for availability
Lead timeIn Stock wk
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

69167-107HLF Technical Specifications
ParameterValue
SeriesMini-PV™, Basics+
GenderMale Pin
Mounting typeThrough Hole
Connector typeHeader
Fastening typeFriction Lock
Contact materialPhosphor Bronze
Insulation colorBlack
Insulation height0.386\" (9.80mm)
Material flammability ratingUL94 V-0
StyleBoard to Cable/Wire
PackageBulk
ShroudingShrouded - 2 Wall
TerminationSolder
Contact shapeSquare
Rows1
Pitch0.100\" (2.54mm)
Positions7
Contact length - post0.120\" (3.05mm)
Overall contact length0.465\" (11.81mm)
Contact finish - matingGold or Gold, GXT™
Contact length - mating0.230\" (5.84mm)
Contact finish thickness - mating30.0µin (0.76µm)

Product details

7-Position Single-Row Header with 0.100" Pitch and Friction Lock

The 69167-107HLF: The shroud is a 2-wall design, 0.386" (9.80mm) tall, which protects the male pins during blind mating and prevents accidental shorting against adjacent components on the board. The phosphor bronze base spring maintains contact force over the connector's service life.

This means the BOM line is safe for new designs and ongoing production without a short-term obsolescence watch. Sourced through independent distribution channels. Submit a quote request for the exact quantity and lead time.

Frequently asked questions

Where can I buy 69167-107HLF and how do I get a price?

The 69167-107HLF is sourced through independent distribution.

What is the closest functional alternative if 69167-107HLF is unavailable?

The 69167-108HLF (8 positions) is the nearest peer — same pitch, plating, shroud, and friction lock. The only difference is one additional circuit. The footprint and mating half are identical.
