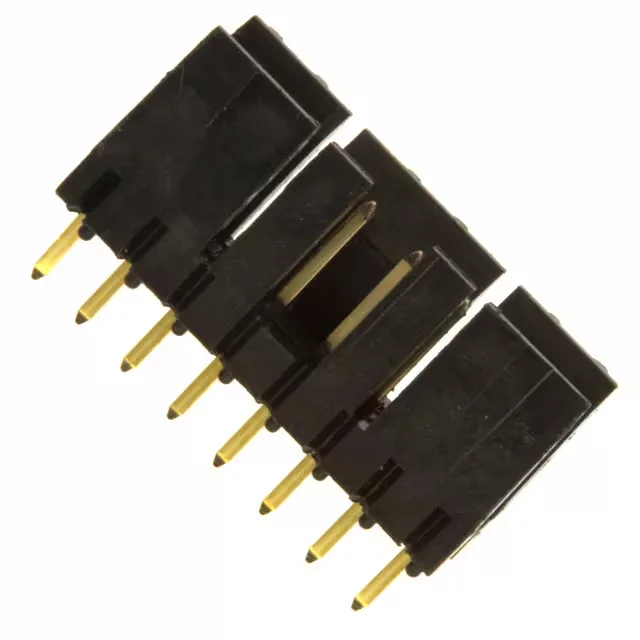

Amphenol ICC (FCI) Mini-PV™, Basics+ series, 69167-109HLF, 9-position single-row shrouded header, 0.100" (2.54mm) pitch, through-hole solder termination, friction lock, gold 30.0µin mating finish, UL94 V-0 black housing.
| Parameter | Value |
|---|---|
| Series | Mini-PV™, Basics+ |
| Type | Male Pin |
| Mounting | Through Hole |
| Connector type | Header |
| Fastening type | Friction Lock |
| Contact material | Phosphor Bronze |
| Insulation color | Black |
| Insulation height | 0.386\" (9.80mm) |
| Material flammability rating | UL94 V-0 |
| Style | Board to Cable/Wire |
| Package | Bulk |
| Shrouding | Shrouded - 2 Wall |
| Parameter | Value |
|---|---|
| Termination | Solder |
| Contact shape | Square |
| Rows | 1 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 9 |
| Contact length - post | 0.120\" (3.05mm) |
| Overall contact length | 0.465\" (11.81mm) |
| Contact finish - mating | Gold or Gold, GXT™ |
| Contact length - mating | 0.230\" (5.84mm) |
| Contact finish thickness - mating | 30.0µin (0.76µm) |
The 69167-109HLF is a 9-position, single-row, shrouded header from Amphenol ICC (FCI)'s Mini-PV™, Basics+ series. The friction lock holds the mating housing without a secondary latch or screw — enough retention for moderate-vibration environments like industrial control panels or test equipment, but not rated for automotive underhood or continuous shock.
It is RoHS Compliant.
No. The 69167-109HLF has 9 positions; the 69167-108HLF has 8 positions. The pitch (0.100"), overall length (0.465"), and mounting are identical, so the PCB footprint is the same pitch, but the 9-position header occupies 0.900" of board edge vs. 0.800" for the 8-position. The mating housing must also have 9 cavities — a direct swap without rewiring the harness is not possible.
