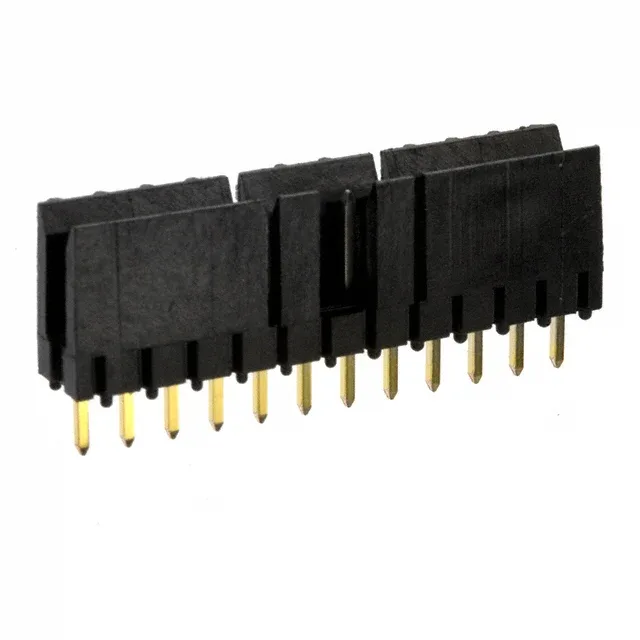

69167-112HLF Amphenol ICC (FCI) Mini-PV™ Header, 12 Pos

MPN69167-112HLF
Active

Amphenol ICC (FCI) Mini-PV™, Basics+ series, 12-position single-row shrouded header, 0.100" (2.54 mm) pitch, through-hole solder termination, 30.0 µinch gold mating finish, friction lock, UL94 V-0 black housing.

$1.8800Ref. price · indicative, final on quote
69167-112HLF datasheet
StockContact for availability
Lead timeIn Stock wk
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

69167-112HLF Technical Specifications
ParameterValue
SeriesMini-PV™, Basics+
GenderMale Pin
Mounting typeThrough Hole
Connector typeHeader
Fastening typeFriction Lock
Contact materialPhosphor Bronze
Insulation colorBlack
Insulation height0.386\" (9.80mm)
Material flammability ratingUL94 V-0
StyleBoard to Cable/Wire
PackageBulk
ShroudingShrouded - 2 Wall
TerminationSolder
Contact shapeSquare
Rows1
Pitch0.100\" (2.54mm)
Positions12
Contact length - post0.120\" (3.05mm)
Overall contact length0.465\" (11.81mm)
Contact finish - matingGold or Gold, GXT™
Contact length - mating0.230\" (5.84mm)
Contact finish thickness - mating30.0µin (0.76µm)

Product details

Board Layout and Routing Fit

The 69167-112HLF: Through-hole solder termination (contact length - post 0.120") anchors the header against cable strain; the 0.386" insulation height leaves clearance for components under the mated wire housing.

Sourced through independent distribution against RFQ.

Position Count Choices in the Same Series

The 69167-112HLF sits between the 10-position (69167-110HLF) and 15-position (69167-115HLF) siblings in the same Mini-PV™ Basics+ line — same pitch, same gold plating, same friction lock. Choose the circuit count that matches your BOM without changing the connector footprint or mating half.

Frequently asked questions

What is the pinout and mating half for 69167-112HLF?

It mates with a Mini-PV™ receptacle housing (same series) using the friction lock. The square pins are gold-plated 30.0 µinch over phosphor bronze.
