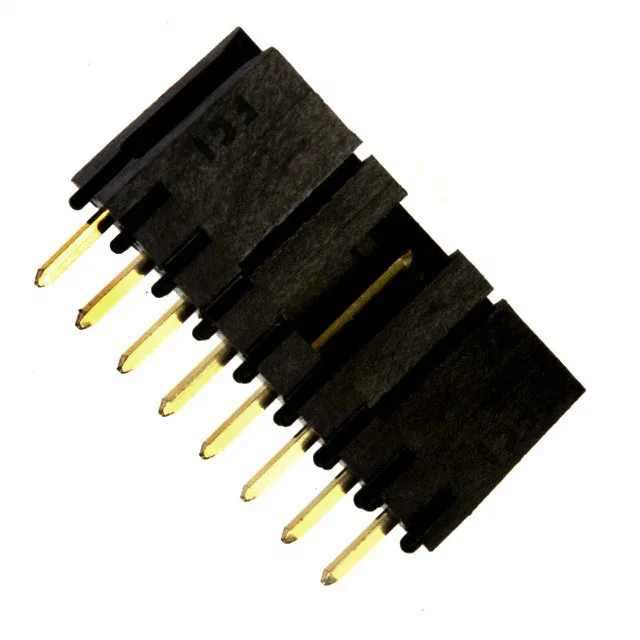

Amphenol ICC (FCI) Mini-PV™, Basics+ header, order code 69167-208, 8 positions, single row, 0.100" (2.54 mm) pitch, shrouded 2-wall, friction lock, through-hole solder termination, UL94 V-0.
| Parameter | Value |
|---|---|
| Series | Mini-PV™, Basics+ |
| Type | Male Pin |
| Mounting | Through Hole |
| Connector type | Header |
| Fastening type | Friction Lock |
| Contact material | Phosphor Bronze |
| Insulation color | Black |
| Insulation height | 0.386\" (9.80mm) |
| Material flammability rating | UL94 V-0 |
| Style | Board to Cable/Wire |
| Package | Bulk |
| Shrouding | Shrouded - 2 Wall |
| Parameter | Value |
|---|---|
| Termination | Solder |
| Contact shape | Square |
| Rows | 1 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 8 |
| Contact length - post | 0.120\" (3.05mm) |
| Overall contact length | 0.465\" (11.81mm) |
| Contact finish - mating | Gold or Gold, GXT™ |
| Contact length - mating | 0.230\" (5.84mm) |
| Contact finish thickness - mating | 15.0µin (0.38µm) |
The 69167-208: It mates with board-to-cable/wire receptacles using a friction-lock fastening system that holds the pair together under moderate vibration.
A friction lock on the shroud engages the mating receptacle housing — no secondary latch hardware needed for retention in low-vibration cabinet environments.
RoHS and REACH compliance documentation is available from Amphenol ICC (FCI) per standard industry practice.
