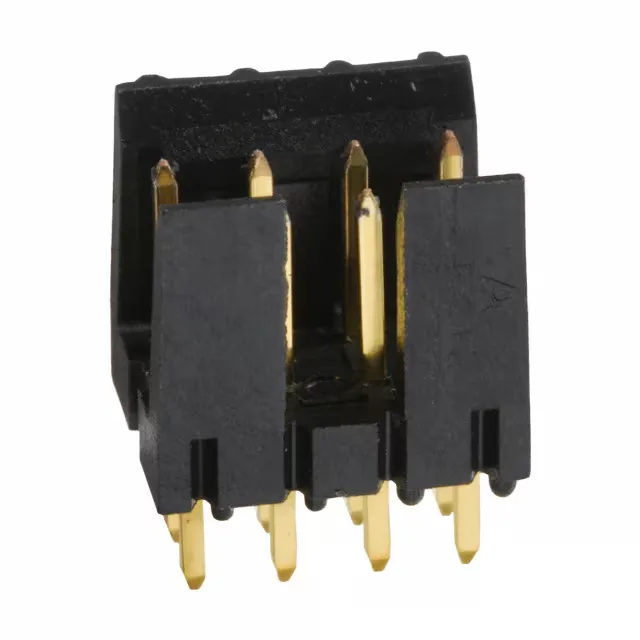

69168-108HLF — Amphenol product photo
Amphenol

69168-108HLF Amphenol ICC (FCI) Mini-PV™ Pin Header 8 Pos

MPN69168-108HLF
Active

Amphenol ICC (FCI) Mini-PV™, Basics+ series, 8-position dual-row vertical header, 0.100" (2.54mm) pitch, shrouded 2-wall, friction lock, through-hole solder termination, 30.0µin gold mating finish.

$1.3800Ref. price · indicative, final on quote
69168-108HLF datasheet
StockContact for availability
Lead timeIn Stock wk
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

69168-108HLF Technical Specifications
ParameterValue
SeriesMini-PV™, Basics+
GenderMale Pin
Mounting typeThrough Hole
Connector typeHeader
Fastening typeFriction Lock
Contact materialPhosphor Bronze
Insulation colorBlack
Insulation height0.386\" (9.80mm)
Material flammability ratingUL94 V-0
StyleBoard to Cable/Wire
PackageBulk
ShroudingShrouded - 2 Wall
TerminationSolder
Contact shapeSquare
Rows2
Pitch0.100\" (2.54mm)
Positions8
Row spacing - mating0.100\" (2.54mm)
Contact length - post0.120\" (3.05mm)
Overall contact length0.400\" (10.16mm)
Contact finish - matingGold or Gold, GXT™
Contact length - mating0.230\" (5.84mm)
Contact finish thickness - mating30.0µin (0.76µm)

Product details

8-Position Dual-Row Vertical Header with Friction Lock

The 69168-108HLF: The header mates with Mini-PV™ crimp-socket housings (sold separately) for a board-to-cable connection.

Position Count and Pitch for BOM Fit

The 8-position count is a common BOM line for signal or low-power I/O. Compared to the 6-position sibling (69168-106HLF), this part adds two more circuits in the same 0.100" row spacing — useful when you need to break out an extra pair of sense or control lines without changing the board footprint pitch. The 2.54mm pitch is the standard 0.100" grid, which means the PCB footprint matches legacy through-hole layouts and can be routed on a 2-layer board without micro-vias.

Frequently asked questions

Is 69168-108HLF equivalent to 69168-108?

The 69168-108 is the same base part number without the HLF suffix. Both are 8-position, dual-row, 2.54mm pitch headers with friction lock and 30µin gold. The HLF suffix indicates a specific packaging or plating variant — the functional fit and mating are identical. Use either as a drop-in replacement on the same footprint.

Where can I buy 69168-108HLF?

Sourced to order against your BOM quantity through independent distribution.
