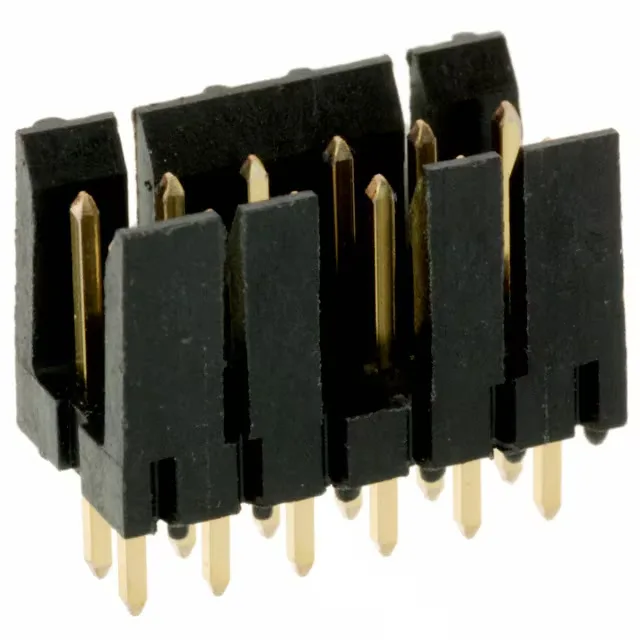

Amphenol ICC (FCI) Mini-PV™, Basics+ series, 69168-112HLF, 12-circuit dual-row shrouded header, 0.100" (2.54mm) pitch, through-hole solder termination, friction lock, 30.0µin gold mating finish, UL94 V-0 black housing.
| Parameter | Value |
|---|---|
| Series | Mini-PV™, Basics+ |
| Type | Male Pin |
| Mounting | Through Hole |
| Connector type | Header |
| Fastening type | Friction Lock |
| Contact material | Phosphor Bronze |
| Insulation color | Black |
| Insulation height | 0.386\" (9.80mm) |
| Material flammability rating | UL94 V-0 |
| Style | Board to Cable/Wire |
| Package | Bulk |
| Shrouding | Shrouded - 2 Wall |
| Parameter | Value |
|---|---|
| Termination | Solder |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 12 |
| Row spacing - mating | 0.100\" (2.54mm) |
| Contact length - post | 0.120\" (3.05mm) |
| Overall contact length | 0.600\" (15.24mm) |
| Contact finish - mating | Gold or Gold, GXT™ |
| Contact length - mating | 0.230\" (5.84mm) |
| Contact finish thickness - mating | 30.0µin (0.76µm) |
It mates with a matching crimp receptacle to form a board-to-cable interconnect. The friction lock fastening secures the mating half without a secondary latch, providing vibration resistance in moderate-shock environments.
This header mates with a Mini-PV™ crimp receptacle (sold separately). Confirm the circuit count and pitch match your receptacle before ordering.
