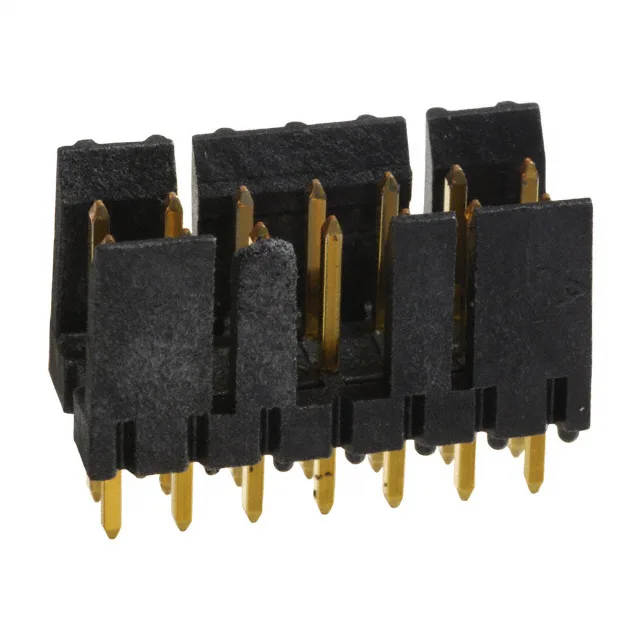

69168-114 Amphenol ICC Mini-PV 14-Pin Header 2.54mm Pitch

MPN69168-114
Active

Amphenol ICC (FCI) Mini-PV™, Basics+ series, 14-position dual-row shrouded header, 0.100" (2.54mm) pitch, through-hole solder termination, 30µin gold-plated male pins, friction lock retention, UL94 V-0 black housing.

$2.1900Ref. price · indicative, final on quote
69168-114 datasheet
StockContact for availability
Lead timeIn Stock wk
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

69168-114 Technical Specifications
ParameterValue
SeriesMini-PV™, Basics+
GenderMale Pin
Mounting typeThrough Hole
Connector typeHeader
Fastening typeFriction Lock
Contact materialPhosphor Bronze
Insulation colorBlack
Insulation height0.386\" (9.80mm)
Material flammability ratingUL94 V-0
StyleBoard to Cable/Wire
PackageBulk
ShroudingShrouded - 2 Wall
TerminationSolder
Contact shapeSquare
Rows2
Pitch0.100\" (2.54mm)
Positions14
Row spacing - mating0.100\" (2.54mm)
Contact length - post0.120\" (3.05mm)
Overall contact length0.700\" (17.78mm)
Contact finish - matingGold or Gold, GXT™
Contact length - mating0.230\" (5.84mm)
Contact finish thickness - mating30.0µin (0.76µm)

Product details

This is a common retention method in Mini-PV and similar 0.100" pitch families — it holds the pair mated until deliberately disengaged. The phosphor bronze contact base provides spring properties that maintain normal force over the connector's service life.

The 69168-114 sits between the 12-position (69168-112HLF) and 16-position (69168-116HLF) variants in the same Mini-PV series. The 14-position version is 0.700" (17.78mm) overall contact length, versus 0.600" for the 12-position and 0.800" for the 16-position.

Frequently asked questions

Is 69168-114 RoHS compliant?

No, the 69168-114 is RoHS non-compliant. If you need a RoHS-compliant version, the 69168-114HLF is the direct functional equivalent with the same form, fit, and function.

What is the pin configuration of 69168-114?

It is a 14-position, dual-row header with all positions loaded. The row spacing is 0.100" (2.54mm), matching the pitch.
