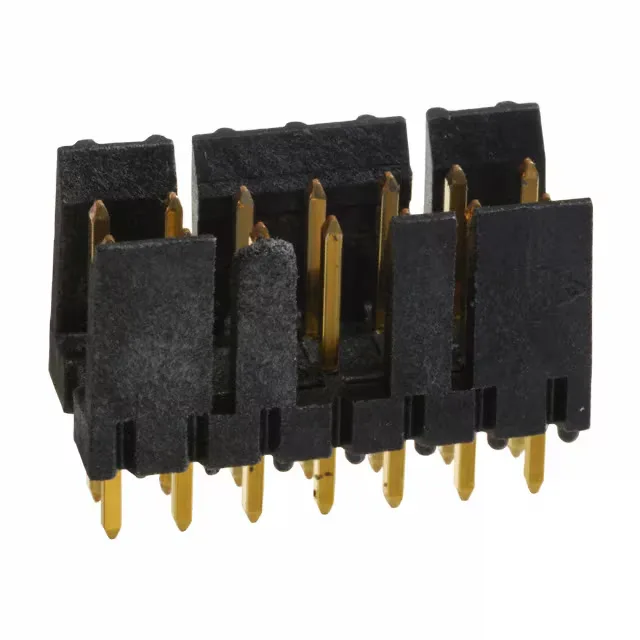

Amphenol ICC (FCI) Mini-PV™, Basics+ series, 14-position dual-row header, 0.100" (2.54mm) pitch, shrouded 2-wall with friction lock, through-hole solder termination, 30µin gold or GXT™ mating finish, UL94 V-0 black housing.
| Parameter | Value |
|---|---|
| Series | Mini-PV™, Basics+ |
| Type | Male Pin |
| Mounting | Through Hole |
| Connector type | Header |
| Fastening type | Friction Lock |
| Contact material | Phosphor Bronze |
| Insulation color | Black |
| Insulation height | 0.386\" (9.80mm) |
| Material flammability rating | UL94 V-0 |
| Style | Board to Cable/Wire |
| Package | Bulk |
| Shrouding | Shrouded - 2 Wall |
| Parameter | Value |
|---|---|
| Termination | Solder |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 14 |
| Row spacing - mating | 0.100\" (2.54mm) |
| Contact length - post | 0.120\" (3.05mm) |
| Overall contact length | 0.700\" (17.78mm) |
| Contact finish - mating | Gold or Gold, GXT™ |
| Contact length - mating | 0.230\" (5.84mm) |
| Contact finish thickness - mating | 30.0µin (0.76µm) |
The 69168-114HLF: The 0.120" (3.05mm) solder tail length suits a typical 1.6mm PCB; the 0.230" (5.84mm) mating pin length engages with the receptacle contact beam.
At this thickness the contact interface supports repeated mating — in a field-service harness that gets cycled quarterly, the plating budget easily exceeds a decade of service before fretting or oxidation becomes a risk.
The exact receptacle part number depends on circuit count and wire exit orientation.
Yes, listed as RoHS compliant.
