Header Identity and Series Position
Comparing Circuit Counts in the 69168 Series
Within the same 69168 family, the 69168-116HLF (16 positions) sits between the 14-position 69168-114HLF and the 18-position 69168-118HLF.

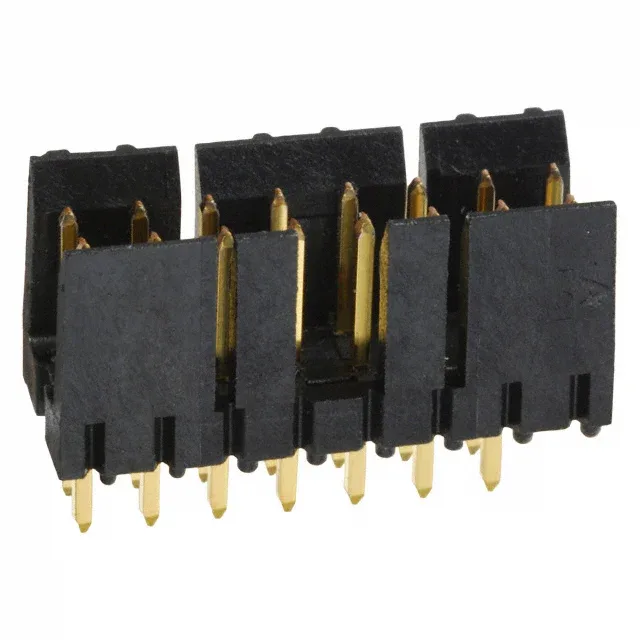

69168-116HLF Amphenol ICC (FCI) 16-Pin Header, 0.100" Pitch
MPN69168-116HLF
Active
Amphenol ICC (FCI) Mini-PV™, Basics+ 69168-116HLF, Board to Cable/Wire header, 16 circuits, 0.100" (2.54 mm) pitch, dual-row, shrouded 2-wall, friction lock, through-hole solder, 30 µinch gold or GXT™ mating finish.
$2.5000Ref. price · indicative, final on quote
RoHSRoHS Compliant
SeriesMini-PV™, Basics+
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Aug 2026
Specifications
| Parameter | Value |
|---|---|
| Series | Mini-PV™, Basics+ |
| Type | Male Pin |
| Mounting | Through Hole |
| Connector type | Header |
| Fastening type | Friction Lock |
| Contact material | Phosphor Bronze |
| Insulation color | Black |
| Insulation height | 0.386\" (9.80mm) |
| Material flammability rating | UL94 V-0 |
| Style | Board to Cable/Wire |
| Package | Bulk |
| Shrouding | Shrouded - 2 Wall |
All specifications
| Parameter | Value |
|---|---|
| Termination | Solder |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 16 |
| Row spacing - mating | 0.100\" (2.54mm) |
| Contact length - post | 0.120\" (3.05mm) |
| Overall contact length | 0.800\" (20.32mm) |
| Contact finish - mating | Gold or Gold, GXT™ |
| Contact length - mating | 0.230\" (5.84mm) |
| Contact finish thickness - mating | 30.0µin (0.76µm) |
Product details
Frequently asked questions
What is the closest functional alternative to 69168-116HLF?
Within the same 69168 series, the 69168-118HLF (18 positions) and 69168-114HLF (14 positions) share the same pitch, plating, and friction lock — but they are not pin-compatible with a 16-position footprint. If the BOM requires exactly 16 circuits, this is the only direct fit from the series.
