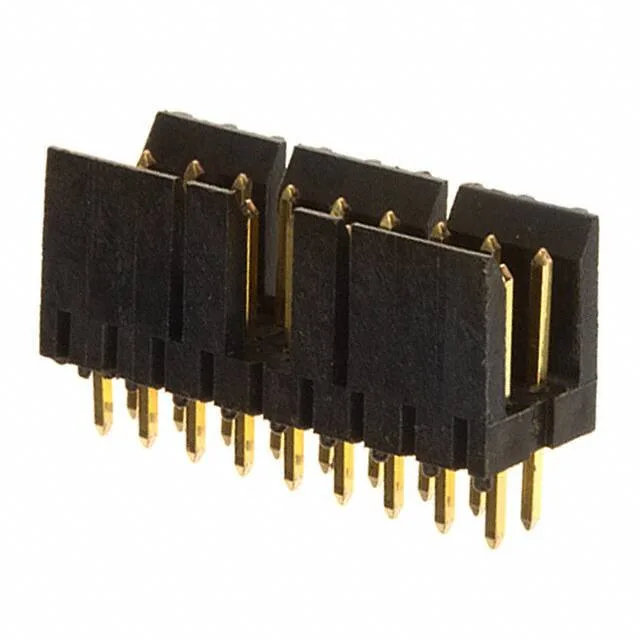

69168-118HLF Amphenol ICC (FCI) Mini-PV™ Header 18 Pos

MPN69168-118HLF
Active

Amphenol ICC (FCI) Mini-PV™, Basics+ series, 69168-118HLF, Board to Cable/Wire header, 18 circuits, 0.100" (2.54mm) pitch, 2 rows, shrouded 2-wall, friction lock, through hole solder termination, 30.0µin gold mating finish.

$2.6000Ref. price · indicative, final on quote
69168-118HLF datasheet
StockContact for availability
Lead timeIn Stock wk
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

69168-118HLF Technical Specifications
ParameterValue
SeriesMini-PV™, Basics+
GenderMale Pin
Mounting typeThrough Hole
Connector typeHeader
Fastening typeFriction Lock
Contact materialPhosphor Bronze
Insulation colorBlack
Insulation height0.386\" (9.80mm)
Material flammability ratingUL94 V-0
StyleBoard to Cable/Wire
PackageBulk
ShroudingShrouded - 2 Wall
TerminationSolder
Contact shapeSquare
Rows2
Pitch0.100\" (2.54mm)
Positions18
Row spacing - mating0.100\" (2.54mm)
Contact length - post0.120\" (3.05mm)
Overall contact length0.900\" (22.86mm)
Contact finish - matingGold or Gold, GXT™
Contact length - mating0.230\" (5.84mm)
Contact finish thickness - mating30.0µin (0.76µm)

Product details

18-Position Vertical Header with Friction Lock

The 69168-118HLF: This is an 18-position, 2-row vertical pin header from the Mini-PV™, Basics+ series by Amphenol ICC (FCI). It mates with a Mini-PV™ receptacle housing (such as the 65039-xxx series) for a board-to-cable connection. A friction lock on the top wall holds the mating housing securely — useful in applications where vibration or cable tug could otherwise separate the pair.

Insulation height of 0.386" (9.80mm) leaves clearance above the board for routing or for a mating connector body.

Bulk packaging — no tape-and-reel or tube; ordered by the piece.

How 18 Positions Compare to the 16-Position Sibling

If your board layout has the extra two positions populated, the 18-position version is the correct drop-in; the 16-position version leaves the last two holes empty.

Frequently asked questions

What is the closest functional second-source to 69168-118HLF?

The 69168-116HLF is the closest peer: same pitch, rows, plating, and locking feature, but with 16 positions instead of 18 and a shorter overall contact length (0.800" vs 0.900"). It is not a form-fit-function replacement if your BOM requires 18 positions.
