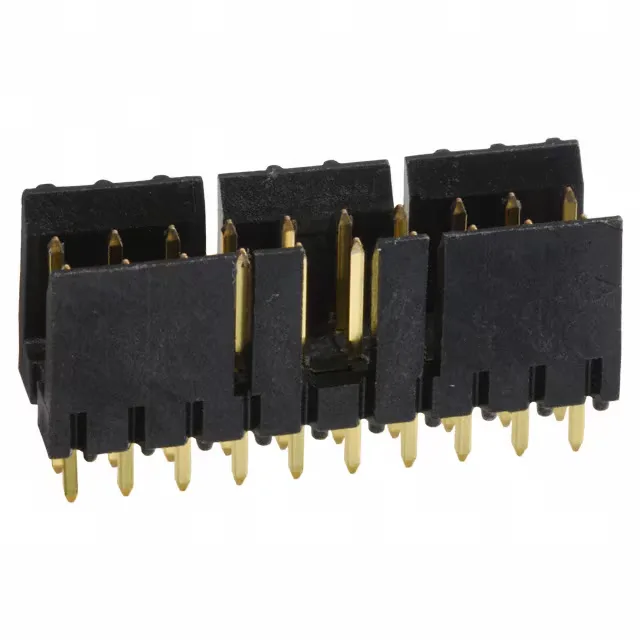

69168-120 Amphenol ICC (FCI) Mini-PV Header, 20 Pos, 2.54mm

MPN69168-120
Active

Amphenol ICC (FCI) Mini-PV™, Basics+ series header, 20 positions, 2 rows, 0.100" (2.54mm) pitch, shrouded - 2 wall, through-hole solder termination, male pin, square contact, friction lock, black UL94 V-0 housing, gold or GXT™ plating 30.0µin (0.76µm) on mating area.

$2.7600Ref. price · indicative, final on quote
69168-120 datasheet
StockContact for availability
Lead time3-5 Days wk
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

69168-120 Technical Specifications
ParameterValue
SeriesMini-PV™, Basics+
GenderMale Pin
Mounting typeThrough Hole
Connector typeHeader
Fastening typeFriction Lock
Contact materialPhosphor Bronze
Insulation colorBlack
Insulation height0.386\" (9.80mm)
Material flammability ratingUL94 V-0
StyleBoard to Cable/Wire
PackageBulk
ShroudingShrouded - 2 Wall
TerminationSolder
Contact shapeSquare
Rows2
Pitch0.100\" (2.54mm)
Positions20
Row spacing - mating0.100\" (2.54mm)
Contact length - post0.120\" (3.05mm)
Overall contact length1.000\" (25.40mm)
Contact finish - matingGold or Gold, GXT™
Contact length - mating0.230\" (5.84mm)
Contact finish thickness - mating30.0µin (0.76µm)

Product details

20-Position 0.100" Pitch Shrouded Header

The 69168-120: This is a 20-circuit, dual-row header from the Mini-PV™ series by Amphenol ICC (FCI). A friction lock secures the mated pair against vibration-induced separation — useful in equipment that sees transport or fan vibration.

Through-Hole Solder Termination and Housing

The overall contact length of 1.000" (25.40mm) and mating length of 0.230" (5.84mm) define the stack-up height for the mated assembly.

RoHS compliance is listed as non-compliant.
