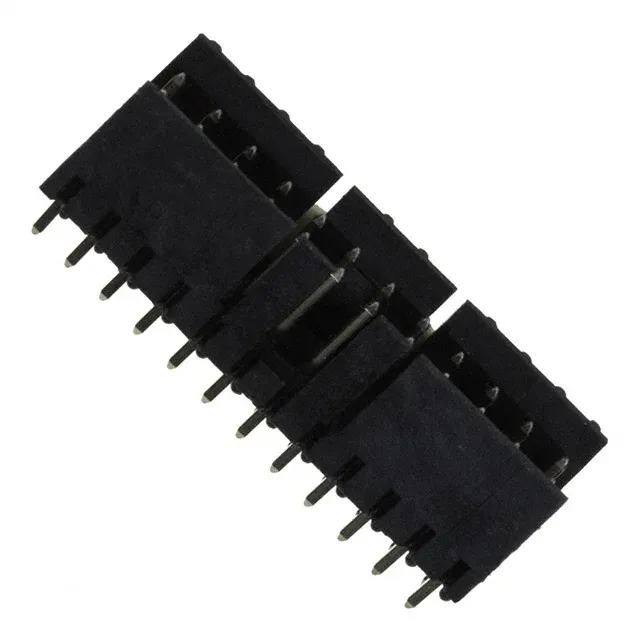

69168-124HLF Amphenol ICC (FCI) Mini-PV™ 24-Pin Header

MPN69168-124HLF
Active

Amphenol ICC (FCI) Mini-PV™, Basics+ series header, 24 circuits, 0.100" (2.54mm) pitch, shrouded 2-wall, friction lock, through-hole solder, gold 30µin mating finish.

$3.4700Ref. price · indicative, final on quote
69168-124HLF datasheet
StockContact for availability
Lead timeIn Stock wk
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

69168-124HLF Technical Specifications
ParameterValue
SeriesMini-PV™, Basics+
GenderMale Pin
Mounting typeThrough Hole
Connector typeHeader
Fastening typeFriction Lock
Contact materialPhosphor Bronze
Insulation colorBlack
Insulation height0.386\" (9.80mm)
Material flammability ratingUL94 V-0
StyleBoard to Cable/Wire
PackageBulk
ShroudingShrouded - 2 Wall
TerminationSolder
Contact shapeSquare
Rows2
Pitch0.100\" (2.54mm)
Positions24
Row spacing - mating0.100\" (2.54mm)
Contact length - post0.120\" (3.05mm)
Overall contact length1.200\" (30.48mm)
Contact finish - matingGold or Gold, GXT™
Contact length - mating0.230\" (5.84mm)
Contact finish thickness - mating30.0µin (0.76µm)

Product details

24-Position Vertical Header with Friction Lock

The 69168-124HLF: This is a 24-position, dual-row, vertical through-hole header from the Mini-PV™ Basics+ series.

Mating Surface and Cycle Life

The phosphor bronze base material provides spring retention without stress relaxation over temperature.

Board Mounting and Envelope

Overall contact length is 1.200" (30.48mm); the mating pin length of 0.230" (5.84mm) engages the receptacle contact beam fully. Insulation height of 0.386" (9.80mm) sets the z-height above the PCB for enclosure clearance.
