26-Pin Shrouded Header with Friction Lock
Listed as Active in production with RoHS compliance per Amphenol ICC (FCI).
Mates with the corresponding Mini-PV™ receptacle housing (female crimp terminals).

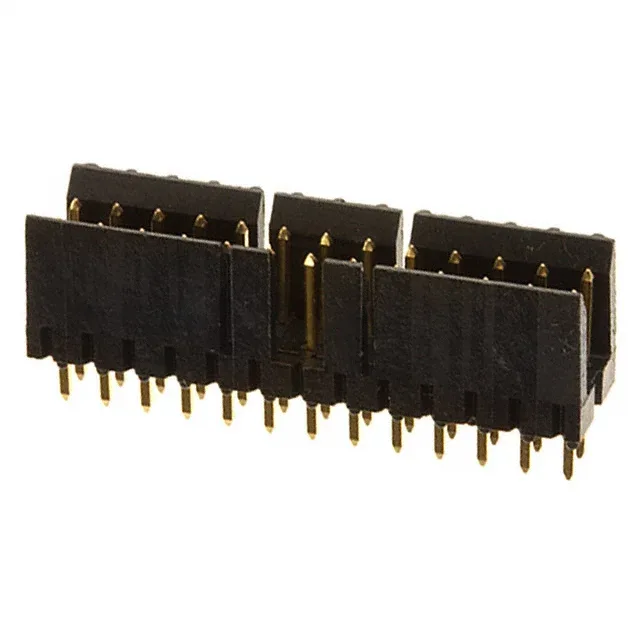

69168-126HLF Amphenol ICC (FCI) Mini-PV Header 26 Pos 2.54mm
MPN69168-126HLF
Active
Amphenol ICC (FCI) Mini-PV™, Basics+ series, 26-position shrouded header, 0.100" (2.54mm) pitch, through-hole solder termination, male pin, square contact, friction lock, gold or GXT™ plating, UL94 V-0, RoHS compliant, Active.
$3.5800Ref. price · indicative, final on quote
RoHSRoHS Compliant
SeriesMini-PV™, Basics+
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Aug 2026
Specifications
| Parameter | Value |
|---|---|
| Series | Mini-PV™, Basics+ |
| Type | Male Pin |
| Mounting | Through Hole |
| Connector type | Header |
| Fastening type | Friction Lock |
| Contact material | Phosphor Bronze |
| Insulation color | Black |
| Insulation height | 0.386\" (9.80mm) |
| Material flammability rating | UL94 V-0 |
| Style | Board to Cable/Wire |
| Package | Bulk |
| Shrouding | Shrouded - 2 Wall |
All specifications
| Parameter | Value |
|---|---|
| Termination | Solder |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 26 |
| Row spacing - mating | 0.100\" (2.54mm) |
| Contact length - post | 0.120\" (3.05mm) |
| Overall contact length | 1.300\" (33.02mm) |
| Contact finish - mating | Gold or Gold, GXT™ |
| Contact length - mating | 0.230\" (5.84mm) |
| Contact finish thickness - mating | 30.0µin (0.76µm) |
Product details
Frequently asked questions
What is the mating connector for 69168-126HLF?
Mates with a Mini-PV™ receptacle housing that accepts female crimp terminals. The exact receptacle part number depends on circuit count and wire gauge — confirm before ordering.
