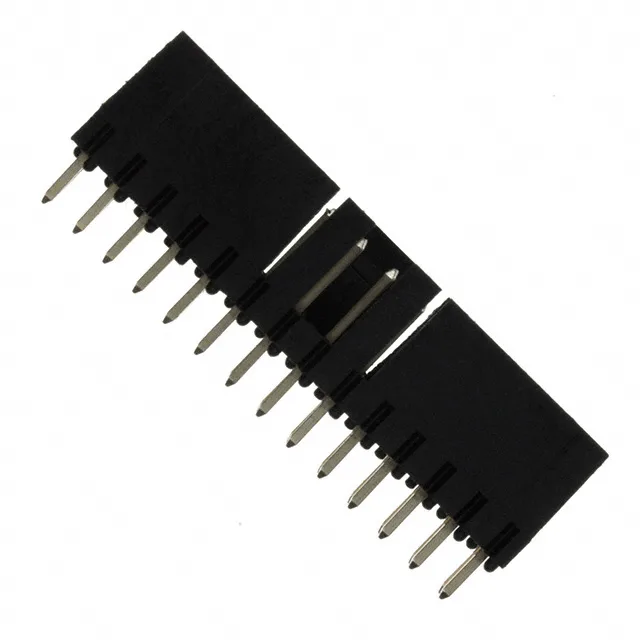

69168-128HLF Amphenol ICC (FCI) Pin Header – 28 Pos, 2.54mm

MPN69168-128HLF
Active

Amphenol ICC (FCI) Mini-PV™, Basics+ series, 28-position dual-row shrouded header, 0.100" (2.54mm) pitch, through-hole solder termination, friction lock, 30µin gold-plated square pins, UL94 V-0 black housing.

$4.0600Ref. price · indicative, final on quote
69168-128HLF datasheet
StockContact for availability
Lead timeIn Stock wk
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

69168-128HLF Technical Specifications
ParameterValue
SeriesMini-PV™, Basics+
GenderMale Pin
Mounting typeThrough Hole
Connector typeHeader
Fastening typeFriction Lock
Contact materialPhosphor Bronze
Insulation colorBlack
Insulation height0.386\" (9.80mm)
Material flammability ratingUL94 V-0
StyleBoard to Cable/Wire
PackageBulk
ShroudingShrouded - 2 Wall
TerminationSolder
Contact shapeSquare
Rows2
Pitch0.100\" (2.54mm)
Positions28
Row spacing - mating0.100\" (2.54mm)
Contact length - post0.120\" (3.05mm)
Overall contact length0.465\" (11.81mm)
Contact finish - matingGold or Gold, GXT™
Contact length - mating0.230\" (5.84mm)
Contact finish thickness - mating30.0µin (0.76µm)

Product details

The 69168-128HLF is a 28-position, dual-row, shrouded pin header from Amphenol ICC's Mini-PV™ and Basics+ series. It connects a PCB to a wire harness via a matching crimp housing—three parts, not one: the header, the housing, and the terminal. The dual-row arrangement packs 28 circuits into a length of about 1.4 inches, saving board-edge space compared to a single-row layout.

Phosphor bronze contact material provides good spring retention and corrosion resistance, complementing the gold plating for long-term reliability in industrial or outdoor equipment.

Mating Housing and Terminal Compatibility

This header mates with Mini-PV™ crimp housings (e.g., the 65039-xxx series) using standard 0.100" pitch female terminals.

Frequently asked questions

What is the mating connector for 69168-128HLF?

The specific housing part number depends on circuit count and wire gauge—confirm the housing's lock ramp matches this header's friction lock.

Does 69168-128HLF have a friction lock?

Yes, the header includes a friction lock on the shroud that engages with the mating housing's ramp, providing vibration-resistant retention.
