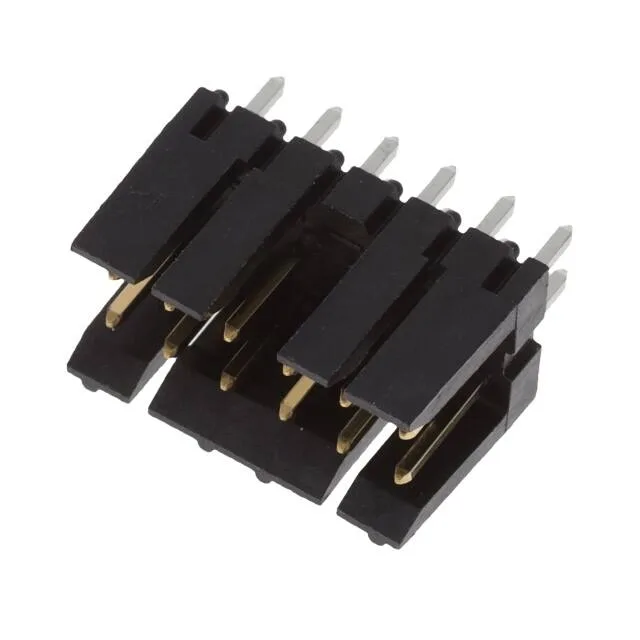

69168-212HLF Amphenol ICC Mini-PV™ Header, 12 Pos

MPN69168-212HLF
Active

Amphenol ICC (FCI) Mini-PV™, Basics+ series, 69168-212HLF: Board to Cable/Wire header, shrouded 2-wall, 12 circuits, 0.100" (2.54mm) pitch, dual row, through hole, friction lock, male pin, gold/GXT™ 15.0µin, UL94 V-0.

$2.1800Ref. price · indicative, final on quote
69168-212HLF datasheet
StockContact for availability
Lead timeIn Stock wk
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

69168-212HLF Technical Specifications
ParameterValue
SeriesMini-PV™, Basics+
GenderMale Pin
Mounting typeThrough Hole
Connector typeHeader
Fastening typeFriction Lock
Contact materialPhosphor Bronze
Insulation colorBlack
Insulation height0.386\" (9.80mm)
Material flammability ratingUL94 V-0
StyleBoard to Cable/Wire
PackageBulk
ShroudingShrouded - 2 Wall
TerminationSolder
Contact shapeSquare
Rows2
Pitch0.100\" (2.54mm)
Positions12
Row spacing - mating0.100\" (2.54mm)
Contact length - post0.120\" (3.05mm)
Overall contact length0.600\" (15.24mm)
Contact finish - matingGold or Gold, GXT™
Contact length - mating0.230\" (5.84mm)
Contact finish thickness - mating15.0µin (0.38µm)

Product details

12-Position Wire-to-Board Header with Friction Lock

Sourcing, Lifecycle, and Compliance

Available in Bulk packaging.

Comparing Circuit Counts in the 69168 Series

Within the same Mini-PV™ series, the 69168-212HLF (12 positions) sits between the 10-position 69168-210HLF and the 14-position 69168-214HLF. If your application demands extended mating cycle life or a more corrosive environment, that thicker plating is worth the premium.

This header mates with Mini-PV™ crimp-socket housings (e.g., 65039-xxx or similar) that accept 22-28 AWG wire.

Frequently asked questions

Where can I buy 69168-212HLF and what is the lead time?

No stock-holding claim is made — submit a request for a firm quote.

What is the pinout of 69168-212HLF?

This is a 12-position, dual-row header with all positions loaded. The mating side uses square male pins; the solder posts are 0.120" (3.05mm) long for through-hole termination.

What is the mating connector for 69168-212HLF?

This header mates with Mini-PV™ crimp-socket receptacles (e.g., housing series 65039 or equivalent) that accept 22-28 AWG wire.

Are there alternatives to 69168-212HLF?

Within the same series, the 69168-214HLF offers 14 positions and the 69168-210HLF offers 10 positions, all with identical plating and locking. For a higher mating-cycle life, the 69168-112HLF provides 30.0µin gold/GXT™ plating at the same 12-position count.
