Discontinued — available through surplus channels
Amphenol ICC (FCI) has marked the 69168-218 as Obsolete. Stock is available through independent surplus distributors; quantities are confirmed at RFQ.

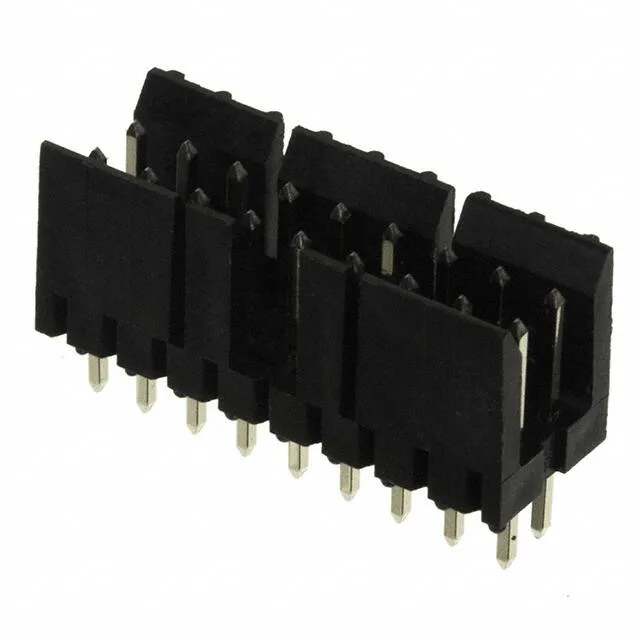

69168-218 Amphenol ICC (FCI) Header, 18 Pos, 0.100" Pitch
MPN69168-218
Obsolete
Amphenol ICC (FCI) Mini-PV™, Basics+ header, order code 69168-218, 18 positions, dual row, 0.100" (2.54mm) pitch, gold or GXT™ mating contacts, through-hole, solder termination, shrouded - 2 wall, friction lock.
$3.0100Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | Mini-PV™, Basics+ |
| Type | Male Pin |
| Mounting | Through Hole |
| Connector type | Header |
| Fastening type | Friction Lock |
| Contact material | Phosphor Bronze |
| Insulation color | Black |
| Insulation height | 0.386\" (9.80mm) |
| Material flammability rating | UL94 V-0 |
| Style | Board to Cable/Wire |
| Package | Bulk |
| Shrouding | Shrouded - 2 Wall |
All specifications
| Parameter | Value |
|---|---|
| Termination | Solder |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 18 |
| Row spacing - mating | 0.100\" (2.54mm) |
| Contact length - post | 0.120\" (3.05mm) |
| Overall contact length | 0.900\" (22.86mm) |
| Contact finish - mating | Gold or Gold, GXT™ |
| Contact length - mating | 0.230\" (5.84mm) |
| Contact finish thickness - mating | 15.0µin (0.38µm) |
