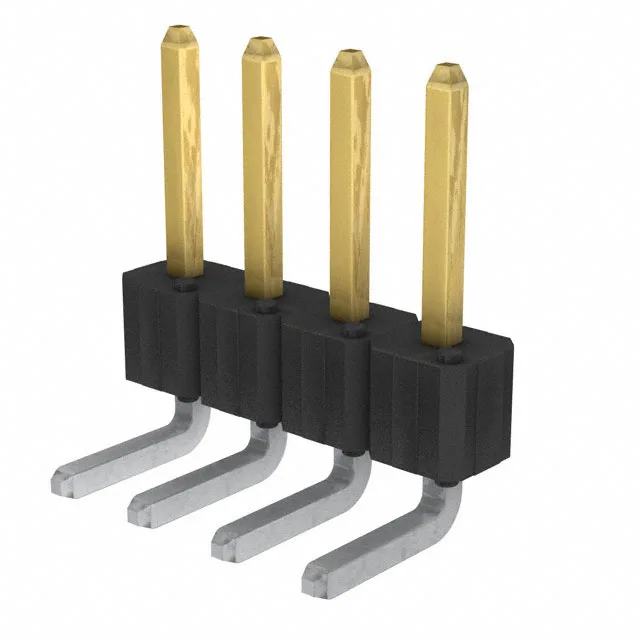

Amphenol ICC (FCI) BERGSTIK® II, 69191-104, 4-position single-row unshrouded header, 0.100" (2.54mm) pitch, through-hole right-angle, male pin, 3A, gold or GXT™ plating, UL94 V-0.
| Parameter | Value |
|---|---|
| Series | BERGSTIK® II |
| Type | Male Pin |
| Mounting | Through Hole, Right Angle |
| Connector type | Header |
| Fastening type | Push-Pull |
| Current rating | 3A |
| Operating temperature | -65°C~125°C |
| Contact material | Phosphor Bronze |
| Insulation color | Black |
| Insulation height | 0.095\" (2.41mm) |
| Material flammability rating | UL94 V-0 |
| Style | Board to Board |
| Parameter | Value |
|---|---|
| Package | Bulk |
| Shrouding | Unshrouded |
| Termination | Kinked Pin, Solder |
| Contact shape | Square |
| Rows | 1 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 4 |
| Contact length - post | 0.120\" (3.05mm) |
| Contact finish - mating | Gold or Gold, GXT™ |
| Contact length - mating | 0.230\" (5.84mm) |
| Contact finish thickness - mating | 30.0µin (0.76µm) |
The 69191-104: The 4-position single-row layout keeps the board area small — useful for low-channel-count signal or power jumpers. The kinked solder tail (post length 0.120" / 3.05mm) provides retention during wave soldering and helps align the part during through-hole insertion.
Yes, the through-hole right-angle mounting orients the pins perpendicular to the PCB, making it suitable for board-edge or mezzanine interconnects.
RoHS compliance is standard for current BERGSTIK® II production; confirm at time of order if a specific certificate is needed.
