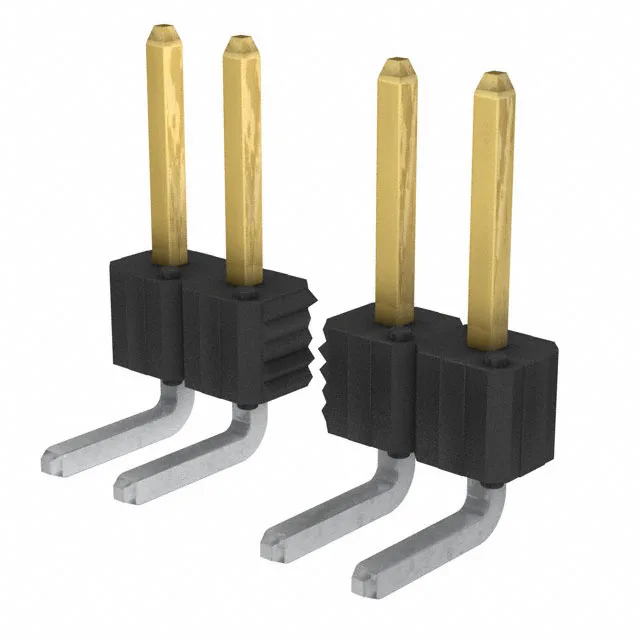

69191-114HLF — Amphenol product photo
Amphenol

69191-114HLF Amphenol ICC BergStik II Header 14 Pos 2.54mm

MPN69191-114HLF
Active

Amphenol ICC (FCI) BergStik® II header, order code 69191-114HLF, 14 positions, single row, 0.100" (2.54 mm) pitch, 3 A, unshrouded, through-hole right-angle, kinked-pin solder termination, gold-plated square pins.

$0.6382Ref. price · indicative, final on quote
69191-114HLF datasheet
StockContact for availability
Lead timeIn Stock wk
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

69191-114HLF Technical Specifications
ParameterValue
SeriesBERGSTIK® II
GenderMale Pin
Mounting typeThrough Hole, Right Angle
Connector typeHeader
Fastening typePush-Pull
Current rating3A
Operating temperature-65°C~125°C
Contact materialPhosphor Bronze
Insulation colorBlack
Insulation height0.095\" (2.41mm)
Material flammability ratingUL94 V-0
StyleBoard to Board
PackageBag
ShroudingUnshrouded
TerminationKinked Pin, Solder
Contact shapeSquare
Rows1
Pitch0.100\" (2.54mm)
Positions14
Contact length - post0.120\" (3.05mm)
Contact finish - matingGold or Gold, GXT™
Contact length - mating0.230\" (5.84mm)
Contact finish thickness - mating30.0µin (0.76µm)

Product details

14-position unshrouded right-angle header

The 69191-114HLF is the 14-circuit member of the Amphenol ICC (FCI) BergStik® II header line. It carries gold-plated square pins rated 3 A at the standard 0.100" pitch and mounts through-hole right-angle with kinked-pin solder termination.

Frequently asked questions

What is 69191-114HLF's listed style?

The listed style is Board to Board.
