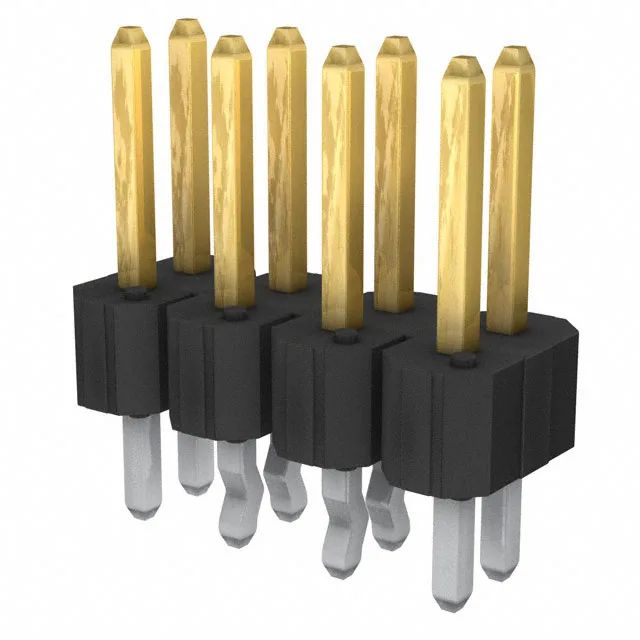

Amphenol ICC (FCI) BERGSTIK® II, 69192-108, unshrouded through-hole header, 8 positions, 2 rows, 0.100" (2.54 mm) pitch, 3 A, gold 30.0 µin mating finish, UL94 V-0.
| Parameter | Value |
|---|---|
| Series | BERGSTIK® II |
| Type | Male Pin |
| Mounting | Through Hole |
| Connector type | Header |
| Fastening type | Push-Pull |
| Current rating | 3A |
| Operating temperature | -65°C~130°C |
| Contact material | Phosphor Bronze |
| Insulation color | Black |
| Insulation height | 0.100\" (2.54mm) |
| Material flammability rating | UL94 V-0 |
| Style | Board to Board |
| Parameter | Value |
|---|---|
| Package | Bulk |
| Shrouding | Unshrouded |
| Termination | Kinked Pin, Solder |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 8 |
| Row spacing - mating | 0.100\" (2.54mm) |
| Contact length - post | 0.120\" (3.05mm) |
| Overall contact length | 0.450\" (11.43mm) |
| Contact finish - mating | Gold or Gold, GXT™ |
| Contact length - mating | 0.230\" (5.84mm) |
| Contact finish thickness - mating | 30.0µin (0.76µm) |
The 69192-108: All 8 positions are loaded, so the BOM position count matches the pin count directly.
The 0.120" post length fits standard 0.062" boards with room for through-hole solder fillets. Operating temperature spans -65°C to 130°C, covering most industrial and telecom enclosures.
The pitch is 0.100" (2.54 mm) on both the mating interface and the row spacing. This is the standard BERGSTIK II grid, compatible with a wide range of receptacles.
Two rows, with all 8 positions loaded — four pins per row.
Sourced to order against your BOM quantity. Availability and current pricing confirmed at quote time.
