Amphenol ICC (FCI) BERGSTIK® II, 69192-408HLF, Board to Board, Header, Male Pin, 8 Positions, 0.100" (2.54mm) Pitch, Dual Row, Through Hole, Tin Contact Finish, UL94 V-0
| Parameter | Value |
|---|---|
| Series | BERGSTIK® II |
| Type | Male Pin |
| Mounting | Through Hole |
| Connector type | Header |
| Fastening type | Push-Pull |
| Current rating | 3A |
| Operating temperature | -65°C~130°C |
| Contact material | Phosphor Bronze |
| Insulation color | Black |
| Insulation height | 0.100\" (2.54mm) |
| Material flammability rating | UL94 V-0 |
| Style | Board to Board |
| Parameter | Value |
|---|---|
| Package | Bag |
| Shrouding | Unshrouded |
| Termination | Kinked Pin, Solder |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 8 |
| Row spacing - mating | 0.100\" (2.54mm) |
| Contact finish - post | Tin |
| Contact length - post | 0.120\" (3.05mm) |
| Overall contact length | 0.450\" (11.43mm) |
| Contact finish - mating | Tin |
| Contact length - mating | 0.230\" (5.84mm) |
| Contact finish thickness - mating | 100.0µin (2.54µm) |

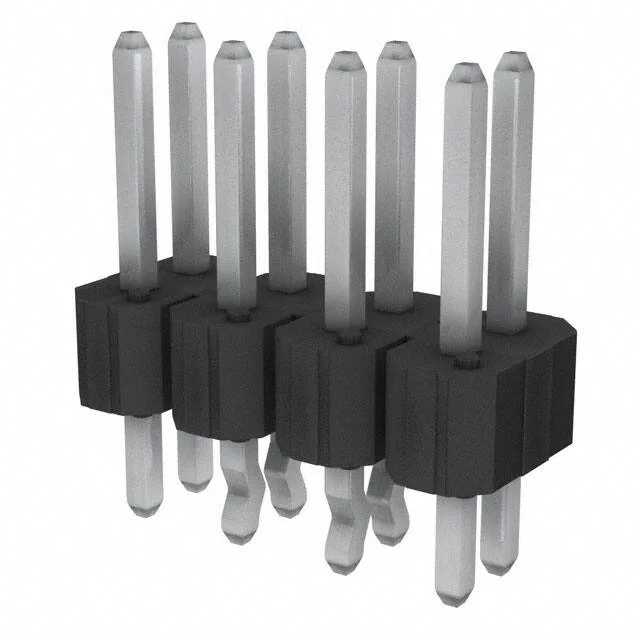

The 69192-408HLF is an unshrouded BERGSTIK® II header from Amphenol ICC (FCI), delivering 8 male pins arranged in two rows at the classic 0.100" (2.54mm) pitch.
Tin is the workhorse for low-cycle, indoor environments — it oxidizes but the oxide layer is mechanically wiped away during insertion. For a connector that sees occasional disconnect (say, during board rework), this is fine.
The peer 69190-405HLF is a single-row, 5-position version of the same series. For a dual-row alternative with the same pitch and finish, the 67997-410HLF offers 10 positions. Neither is a direct pin-for-pin replacement — the circuit count differs.
The pitch is 0.100" (2.54mm) on both the mating interface and the row spacing. It has two rows with 8 positions total, all loaded.
