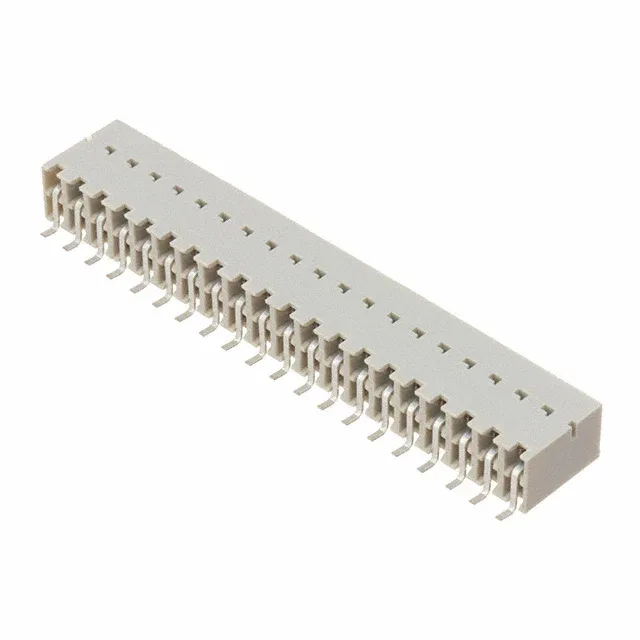

Amphenol ICC (FCI) Dubox™ series, 40-position dual-row receptacle, 0.100" (2.54mm) pitch, 30.0µin gold mating finish, surface mount right-angle, UL94 V-0, RoHS compliant, active production.
| Parameter | Value |
|---|---|
| Series | Dubox™ |
| Type | Female Socket |
| Mounting | Surface Mount, Right Angle |
| Connector type | Receptacle |
| Fastening type | Push-Pull |
| Contact material | Phosphor Bronze |
| Insulation color | Gray |
| Insulation height | 0.230\" (5.85mm) |
| Insulation material | Thermoplastic, Glass Filled |
| Material flammability rating | UL94 V-0 |
| Style | Board to Board |
| Package | Tube |
| Parameter | Value |
|---|---|
| Termination | Solder |
| Applications | Automotive, General Purpose, Industrial, Telecommunications |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 40 |
| Row spacing - mating | 0.100\" (2.54mm) |
| Contact finish - post | Tin |
| Contact finish - mating | Gold |
| Contact finish thickness - post | 78.7µin (2.00µm) |
| Contact finish thickness - mating | 30.0µin (0.76µm) |
Sourced through independent distribution channels.
The phosphor bronze contacts provide reliable spring properties over the service life. In high-vibration environments, a header with a friction lock or board-lock feature is recommended.
The 71609-320LF is available through independent distribution. Pricing and lead time are confirmed at quote time against your BOM quantity — submit an RFQ for current availability. No stock-holding claim is made on this listing.
