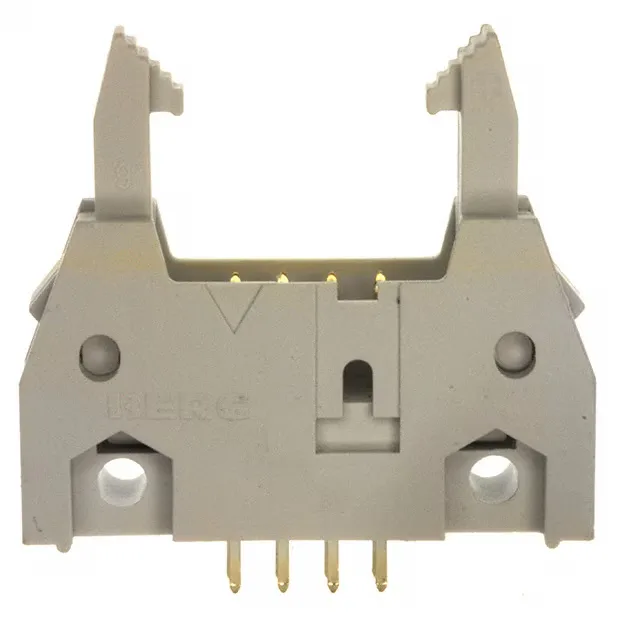

71918-108LF — Amphenol product photo
Amphenol

71918-108LF Amphenol ICC (FCI) Quickie™ 8-Pin Header

MPN71918-108LF
Active

Amphenol ICC (FCI) Quickie™ series, 71918-108LF, 8-position (2-row) shrouded header, 0.100" (2.54mm) pitch, through-hole solder termination, male pin contacts with 30.0µin gold GXT™ mating finish, latch lock/eject hooks, UL94 V-0 gray thermoplastic housing.

$1.4500Ref. price · indicative, final on quote
71918-108LF datasheet
StockContact for availability
Lead timeIn Stock wk
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

71918-108LF Technical Specifications
ParameterValue
SeriesQuickie™
GenderMale Pin
Mounting typeThrough Hole
Connector typeHeader
Fastening typeLatch Lock/Eject Hooks
Contact materialPhosphor Bronze
Insulation colorGray
Insulation height0.685\" (17.40mm)
Insulation materialThermoplastic, Glass Filled
Material flammability ratingUL94 V-0
StyleBoard to Cable/Wire
PackageTube
FeaturesKeying Slot, Mounting Flange
ShroudingShrouded - 4 Wall
TerminationSolder
Contact shapeSquare
Rows2
Pitch0.100\" (2.54mm)
Positions8
Row spacing - mating0.100\" (2.54mm)
Contact finish - postTin
Contact length - post0.114\" (2.90mm)
Contact finish - matingGold, GXT™
Contact length - mating0.228\" (5.80mm)
Contact finish thickness - post78.7µin (2.00µm)
Contact finish thickness - mating30.0µin (0.76µm)

Product details

8-Position Dual-Row Header for Board-to-Cable/Wire

The 71918-108LF: A latch lock/eject hook fastening system secures the mated pair, providing positive retention against cable strain and vibration.

The 71918 family includes 6-position (71918-106LF), 14-position (71918-114LF), and 30-position (71918-130LF) variants, all sharing the same 2-row, 0.100" pitch, gold GXT™ plating, and latch lock/eject hook design. Choosing the right position count is the primary BOM decision — the footprint and housing width scale linearly with circuit count.

Frequently asked questions

What is the mating connector for the 71918-108LF?

The latch lock/eject hooks on the header engage with matching slots on the receptacle.
