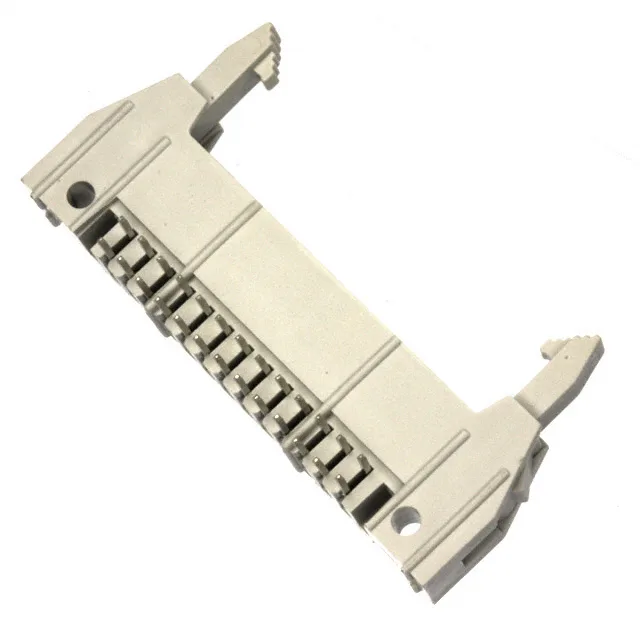

71922-126LF — Amphenol product photo
Amphenol

71922-126LF Amphenol ICC (FCI) Quickie™ Header 26 Pos 2.54mm

MPN71922-126LF
Active

Amphenol ICC (FCI) Quickie™ series, 71922-126LF, Board to Cable/Wire header, 26 circuits, 2.54mm pitch, right-angle through-hole, shrouded 4-wall, latch lock/eject hooks, gold GXT™ mating finish, UL94 V-0.

$2.7400Ref. price · indicative, final on quote
71922-126LF datasheet
StockContact for availability
Lead timeIn Stock wk
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

71922-126LF Technical Specifications
ParameterValue
SeriesQuickie™
GenderMale Pin
Mounting typeThrough Hole, Right Angle
Connector typeHeader
Fastening typeLatch Lock/Eject Hooks
Contact materialPhosphor Bronze
Insulation colorGray
Insulation height0.339\" (8.61mm)
Insulation materialThermoplastic, Glass Filled
Material flammability ratingUL94 V-0
StyleBoard to Cable/Wire
PackageTube
FeaturesKeying Slot, Mounting Flange
ShroudingShrouded - 4 Wall
TerminationSolder
Contact shapeSquare
Rows2
Pitch0.100\" (2.54mm)
Positions26
Row spacing - mating0.100\" (2.54mm)
Contact finish - postTin
Contact length - post0.114\" (2.90mm)
Contact finish - matingGold, GXT™
Contact length - mating0.228\" (5.80mm)
Contact finish thickness - post78.7µin (2.00µm)
Contact finish thickness - mating30.0µin (0.76µm)

Product details

26-Pin Right-Angle Header for Ribbon-Cable Harnesses

The 71922-126LF is a 26-position, 2-row header from Amphenol ICC (FCI)'s Quickie™ series, designed for board-to-cable/wire interconnect.

Gold GXT™ Mating Surface and Solder Termination

The mating contacts are finished with 30.0 µinch (0.76 µm) of gold over nickel — Amphenol's GXT™ plating — rated for repeated mating cycles and corrosion resistance in field-service or industrial environments. The solder tails are tin-plated (78.7 µinch / 2.00 µm) for reliable soldering to the PCB. Contacts are phosphor bronze, square male pins, with all 26 positions loaded.

Frequently asked questions

What is the pitch and position count of 71922-126LF?

All positions are loaded.

Does 71922-126LF have a locking mechanism?

Yes, it uses a latch lock/eject hooks fastening system for positive retention and easy harness removal.

What is the closest alternative to 71922-126LF in the same series?

The 71922-150LF is a 50-position version with identical pitch, plating, and locking. The 71922-110LF is a 10-position version. Both share the same Quickie™ right-angle header design.
