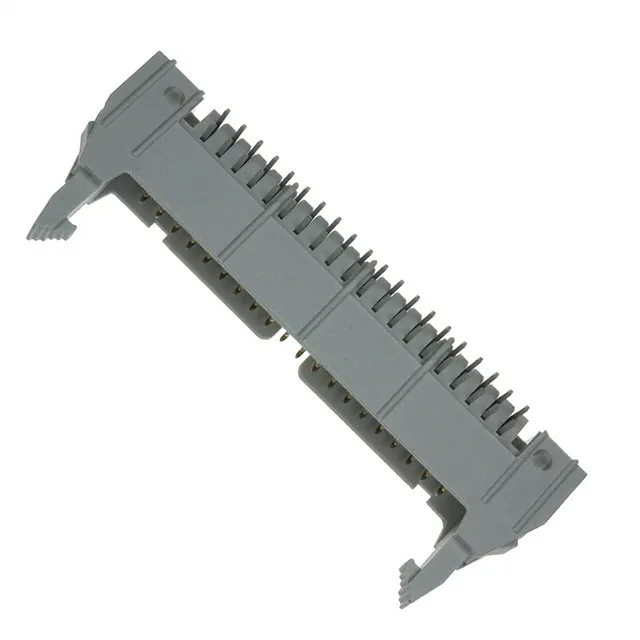

Amphenol ICC (FCI) Quickie header, order code 71922-140LF, 40 positions, dual row, 0.100" (2.54mm) pitch, gold GXT mating contacts, through-hole right-angle, solder termination, shrouded 4-wall, latch lock/eject hooks.
| Parameter | Value |
|---|---|
| Series | Quickie™ |
| Type | Male Pin |
| Mounting | Through Hole, Right Angle |
| Connector type | Header |
| Fastening type | Latch Lock/Eject Hooks |
| Contact material | Phosphor Bronze |
| Insulation color | Gray |
| Insulation height | 0.339\" (8.61mm) |
| Insulation material | Thermoplastic, Glass Filled |
| Material flammability rating | UL94 V-0 |
| Style | Board to Cable/Wire |
| Package | Tube |
| Parameter | Value |
|---|---|
| Features | Keying Slot, Mounting Flange |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 40 |
| Row spacing - mating | 0.100\" (2.54mm) |
| Contact finish - post | Tin |
| Contact length - post | 0.114\" (2.90mm) |
| Contact finish - mating | Gold, GXT™ |
| Contact length - mating | 0.228\" (5.80mm) |
| Contact finish thickness - post | 78.7µin (2.00µm) |
| Contact finish thickness - mating | 30.0µin (0.76µm) |
The 71922-140LF is the 40-position member of Amphenol ICC's Quickie header line, a shrouded board-to-cable/wire connector with latch lock/eject hooks for positive retention.
The header mates with Quickie IDC receptacles and other compatible 0.100" pitch cable assemblies — the keying slot and mounting flange prevent mis-insertion and add board retention.
The 40-position count is specific to this order code.
