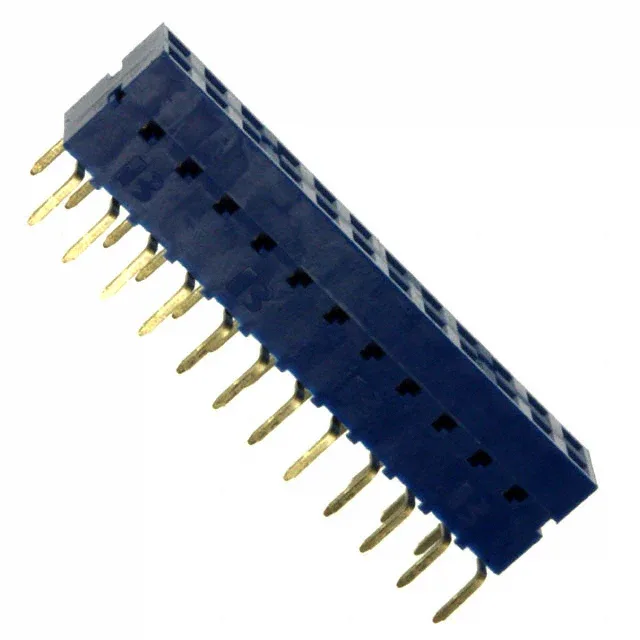

71991-312LF — Amphenol product photo
Amphenol

71991-312LF Amphenol ICC Dubox™ 24-Position Female Socket

MPN71991-312LF
Active

Amphenol ICC (FCI) Dubox™ 71991-312LF — 24-position, dual-row female socket header, 0.100" (2.54 mm) pitch, through-hole solder termination, gold-plated mating contacts, UL94 V-0 blue thermoplastic housing.

$3.2200Ref. price · indicative, final on quote
71991-312LF datasheet
StockContact for availability
Lead timeIn Stock wk
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

71991-312LF Technical Specifications
ParameterValue
SeriesDubox™
GenderFemale Socket
Mounting typeThrough Hole
Connector typeReceptacle, Bottom or Top Entry
Fastening typePush-Pull
Contact materialPhosphor Bronze
Insulation colorBlue
Insulation height0.275\" (6.99mm)
Insulation materialThermoplastic, Glass Filled
Mated stacking heights11.04mm
Material flammability ratingUL94 V-0
StyleBoard to Board
PackageTube
TerminationSolder
ApplicationsAutomotive, General Purpose, Industrial, Telecommunications
Contact shapeSquare
Rows2
Pitch0.100\" (2.54mm)
Positions24
Row spacing - mating0.100\" (2.54mm)
Contact finish - postTin
Contact length - post0.118\" (3.00mm)
Contact finish - matingGold
Contact finish thickness - post78.7µin (2.00µm)
Contact finish thickness - mating30.0µin (0.76µm)

Product details

Board-to-Board Stacking with the Dubox™ 71991-312LF

Contact Plating and Mating Durability

Position Count Variants in the 71991 Series

The 71991 family includes 22-position (71991-311LF), 24-position (this part), 26-position (71991-313LF), and 28-position (71991-314LF) versions — all sharing the same 0.100" pitch, dual-row layout, 11.04 mm stack height, and gold plating. If your BOM calls for one of the adjacent position counts, the mechanical footprint and mating header pitch are identical; only the board space and pin count change.

Frequently asked questions

What is the pitch of the 71991-312LF?

The mating pitch is 0.100" (2.54 mm), with the same 0.100" row spacing. This is the standard 0.100-inch grid that matches most industry pin headers.

Is the 71991-312LF RoHS compliant?

Yes, it is RoHS compliant.

Can I use the 71991-312LF for wire-to-board applications?

No — this is a board-to-board receptacle that mates with a pin header soldered to another PCB. It is not designed for discrete wire termination.
