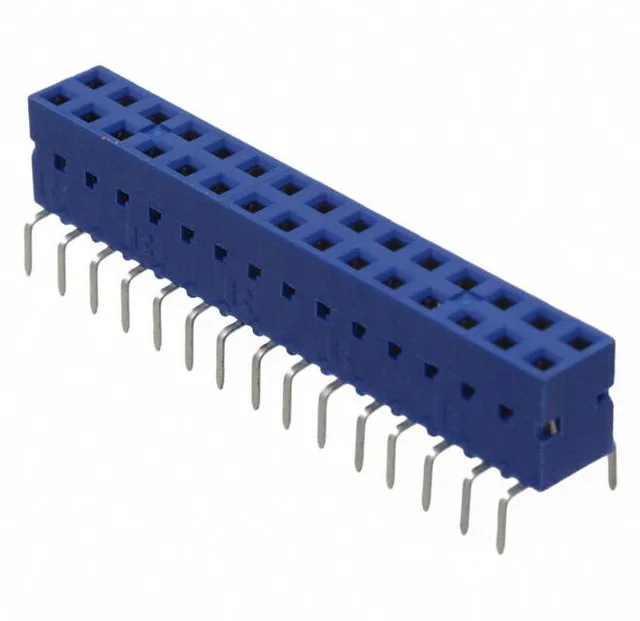

Amphenol ICC (FCI) Dubox™, 30-position, 0.100" (2.54 mm) pitch board-to-board receptacle, through-hole solder termination, gold-plated mating contacts, 11.04 mm mated stack height, UL94 V-0 blue housing.
| Parameter | Value |
|---|---|
| Series | Dubox™ |
| Type | Female Socket |
| Mounting | Through Hole |
| Connector type | Receptacle, Bottom or Top Entry |
| Fastening type | Push-Pull |
| Contact material | Phosphor Bronze |
| Insulation color | Blue |
| Insulation height | 0.275\" (6.99mm) |
| Insulation material | Thermoplastic, Glass Filled |
| Mated stacking heights | 11.04mm |
| Material flammability rating | UL94 V-0 |
| Style | Board to Board |
| Parameter | Value |
|---|---|
| Package | Tube |
| Termination | Solder |
| Applications | Automotive, General Purpose, Industrial, Telecommunications |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 30 |
| Row spacing - mating | 0.100\" (2.54mm) |
| Contact finish - post | Tin |
| Contact length - post | 0.118\" (3.00mm) |
| Contact finish - mating | Gold |
| Contact finish thickness - post | 78.7µin (2.00µm) |
| Contact finish thickness - mating | 30.0µin (0.76µm) |
The 71991-315LF: The solder posts are tin-plated for reliable wave-solder wetting.
The 30-position 71991-315LF sits between the 28-position 71991-314LF and the 32-position 71991-316LF in the same Dubox™ series. If your BOM calls for 28 or 32 circuits, the sibling parts drop in without a footprint change.
No — the 71991-315LF has 30 positions, while the 71991-316LF has 32 positions. They share the same pitch, stack height, and plating, so a 32-position board would need the 71991-316LF to populate all circuits.
