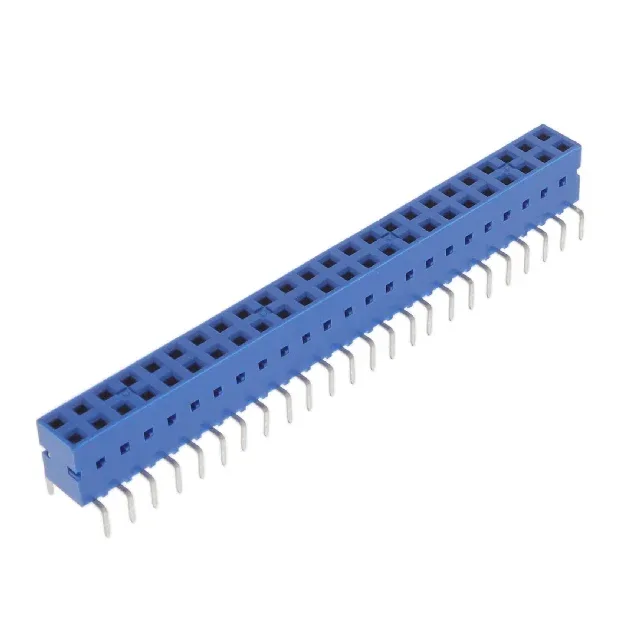

71991-324LF — Amphenol product photo
Amphenol

71991-324LF Amphenol ICC (FCI) Dubox™ 48-Position Female

MPN71991-324LF
Active

Amphenol ICC (FCI) Dubox™ 48-position, dual-row, through-hole female socket receptacle, 0.100" (2.54mm) pitch, 30.0µin gold mating finish, 11.04mm mated stack height, blue thermoplastic housing, RoHS.

$5.7700Ref. price · indicative, final on quote
71991-324LF datasheet
StockContact for availability
Lead time3-5 Days wk
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

71991-324LF Technical Specifications
ParameterValue
SeriesDubox™
GenderFemale Socket
Mounting typeThrough Hole
Connector typeReceptacle, Bottom or Top Entry
Fastening typePush-Pull
Contact materialPhosphor Bronze
Insulation colorBlue
Insulation height0.275\" (6.99mm)
Insulation materialThermoplastic, Glass Filled
Mated stacking heights11.04mm
Material flammability ratingUL94 V-0
StyleBoard to Board
PackageTube
TerminationSolder
ApplicationsAutomotive, General Purpose, Industrial, Telecommunications
Contact shapeSquare
Rows2
Pitch0.100\" (2.54mm)
Positions48
Row spacing - mating0.100\" (2.54mm)
Contact finish - postTin
Contact length - post0.118\" (3.00mm)
Contact finish - matingGold
Contact finish thickness - post78.7µin (2.00µm)
Contact finish thickness - mating30.0µin (0.76µm)

Product details

48-Position Board-to-Board Stacking Receptacle

The 71991-324LF: It mates with a matching pin header to create a mezzanine connection with a fixed 11.04mm mated stack height.

Mating and Stack Height Fit

The 0.118" (3.00mm) solder post length gives enough through-hole standoff for wave soldering without bottom-side bridging. Compared to the 32-position sibling 71991-316LF, this 48-position version adds 16 circuits in the same dual-row footprint — the extra positions extend the board edge length by about 1.6" (40.6mm) at 0.100" pitch. All positions are loaded, so no blank cavities to work around.

Frequently asked questions

How can I order 71991-324LF or check stock?

Availability and current pricing confirmed at quote time.
