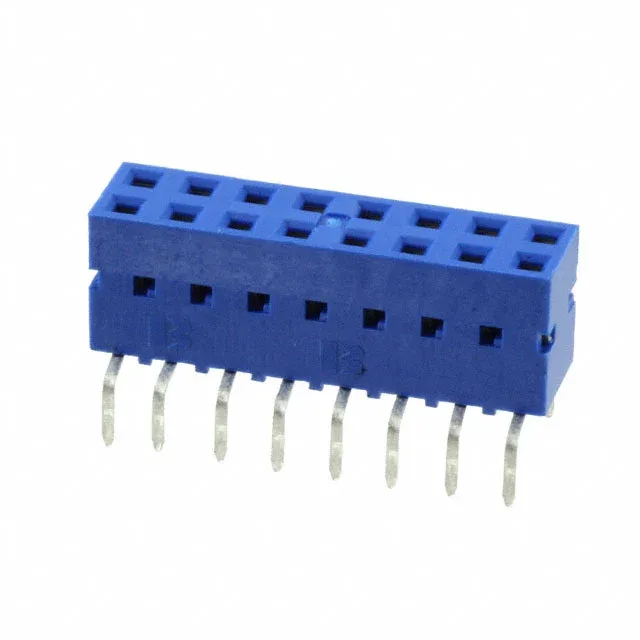

Amphenol ICC (FCI) Dubox™ series, 71991-808LF: 16-position dual-row female socket header, 0.100" (2.54 mm) pitch, through-hole solder termination, gold mating finish, 11.04 mm mated stack height, UL94 V-0 housing.
| Parameter | Value |
|---|---|
| Series | Dubox™ |
| Type | Female Socket |
| Mounting | Through Hole |
| Connector type | Receptacle, Bottom or Top Entry |
| Fastening type | Push-Pull |
| Contact material | Phosphor Bronze |
| Insulation color | Blue |
| Insulation height | 0.275\" (6.99mm) |
| Insulation material | Thermoplastic, Glass Filled |
| Mated stacking heights | 11.04mm |
| Material flammability rating | UL94 V-0 |
| Style | Board to Board |
| Parameter | Value |
|---|---|
| Package | Tube |
| Termination | Solder |
| Applications | Automotive, General Purpose, Industrial, Telecommunications |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 16 |
| Row spacing - mating | 0.100\" (2.54mm) |
| Contact finish - post | Tin |
| Contact length - post | 0.118\" (3.00mm) |
| Contact finish - mating | Gold |
| Contact finish thickness - post | 78.7µin (2.00µm) |
| Contact finish thickness - mating | 15.0µin (0.38µm) |
The 71991-808LF: Gold on the mating face at 15.0 µinch (0.38 µm) provides reliable contact resistance over repeated mating cycles in industrial and telecom equipment.
RoHS compliant per the manufacturer, with a UL94 V-0 glass-filled thermoplastic housing rated for flame retardancy in enclosed equipment.
The Dubox™ series includes matching male headers; confirm the pin length and stack height for your board spacing.
Yes, the 71991-808LF is RoHS compliant per the manufacturer's listing.
