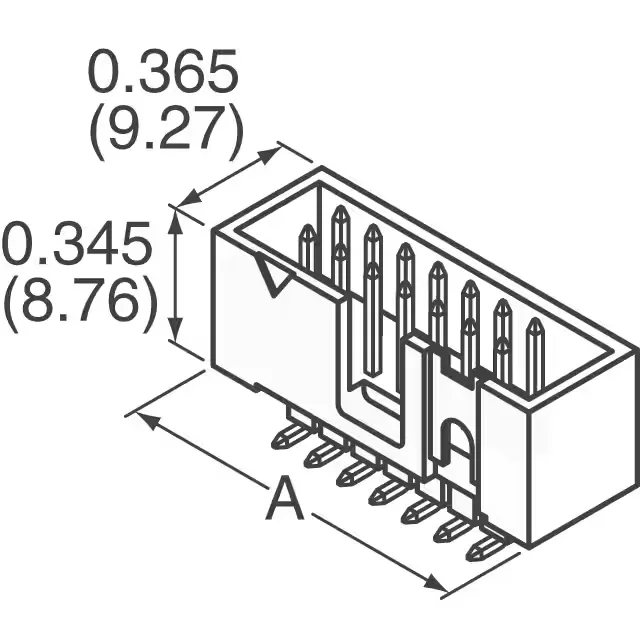

72454-014LF — Amphenol product photo
Amphenol

72454-014LF Amphenol ICC (FCI) Quickie™ Header SMD 14-Pos

MPN72454-014LF
Active

Amphenol ICC (FCI) Quickie™ series, 72454-014LF, board-to-cable/wire header, SMT, 14 positions, 2 rows, 0.100" (2.54 mm) pitch, 1 A per contact, 30.0 µinch gold GXT™ mating finish, shrouded 4-wall, push-pull latch, UL94 V-0.

$2.7000Ref. price · indicative, final on quote
72454-014LF datasheet
StockContact for availability
Lead timeIn Stock wk
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

72454-014LF Technical Specifications
ParameterValue
SeriesQuickie™
GenderMale Pin
Mounting typeSurface Mount
Connector typeHeader
Fastening typePush-Pull
Current rating1A
Operating temperature-65°C~105°C
Contact materialPhosphor Bronze
Insulation colorBlack
Insulation height0.365\" (9.27mm)
Material flammability ratingUL94 V-0
StyleBoard to Cable/Wire
PackageTray
FeaturesKeying Slot, Pick and Place
ShroudingShrouded - 4 Wall
TerminationSolder
Contact shapeSquare
Rows2
Pitch0.100\" (2.54mm)
Positions14
Row spacing - mating0.100\" (2.54mm)
Contact finish - postTin
Contact finish - matingGold, GXT™
Contact length - mating0.230\" (5.84mm)
Contact finish thickness - post78.7µin (2.00µm)
Contact finish thickness - mating30.0µin (0.76µm)

Product details

14-Pin SMT Header – 0.100" Pitch, 30 µinch Gold

SMT Termination with Pick-and-Place Feature

Surface-mount termination with a pick-and-place feature means this header is built for automated assembly lines — the keying slot prevents orientation errors during placement. The 0.365" (9.27 mm) insulation height leaves room for trace routing under the body on a standard 1.6 mm PCB. The 14 positions are fully loaded, so every pin is present — no unpopulated spots to confuse the mating cable assembly.

14 vs 16 Positions – Sibling Comparison

The 72454-016LF is the 16-position sibling in the same Quickie™ series — same 0.100" pitch, same 30 µinch gold GXT™ plating, same SMT footprint width. If your BOM calls for 14 circuits but the routing density allows 16, the 72454-016LF is a drop-in alternative with two extra positions for future expansion or spare routing.

Frequently asked questions

What is the difference between the 72454-014LF and the 72454-016LF?

Both share the same 0.100" pitch, 30 µinch gold GXT™ plating, SMT termination, shrouded 4-wall design, and active lifecycle. The 72454-016LF is a direct functional alternative if you need two extra circuits without changing the footprint width.
