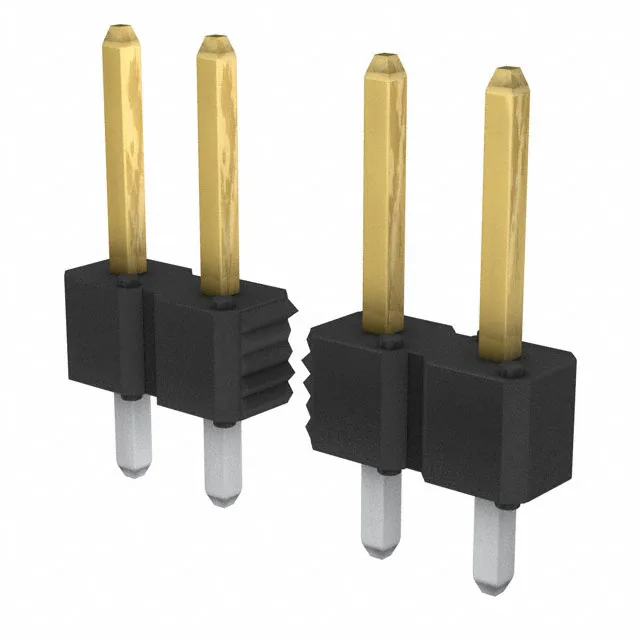

75160-101-36LF BERGSTIK Header, 36 Pos, 0.100" Pitch

MPN75160-101-36LF
Obsolete

Amphenol ICC BERGSTIK Series, 75160-101-36LF, Board to Board Header, 36 Positions, 0.100" (2.54mm) Pitch, Single Row, Through Hole, Solder Termination, Gold GXT Contact Finish, 5A, 110V, UL94 V-0.

$6.7500Ref. price · indicative, final on quote
75160-101-36LF datasheet
StockContact for availability
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

75160-101-36LF Technical Specifications
ParameterValue
SeriesBERGSTIK®
GenderMale Pin
Mounting typeThrough Hole
Connector typeHeader
Fastening typePush-Pull
Voltage rating110V
Current rating5A
Operating temperature-65°C ~ 130°C
Contact materialPhosphor Bronze
Insulation colorBlack
Insulation height0.100\" (2.54mm)
Insulation materialThermoplastic
Material flammability ratingUL94 V-0
StyleBoard to Board
PackageBulk
ShroudingUnshrouded
TerminationSolder
Contact shapeSquare
Rows1
Pitch0.100\" (2.54mm)
Positions36
Contact length - post0.100\" (2.54mm)
Overall contact length0.425\" (10.80mm)
Contact finish - matingGold, GXT™
Contact length - mating0.225\" (5.72mm)
Contact finish thickness - mating30.0µin (0.76µm)

Product details

Design Engineering Note — BERGSTIK 75160-101-36LF

The Amphenol ICC BERGSTIK 75160-101-36LF is a 36-position unshrouded single-row header on the standard 0.100" (2.54mm) pitch, designed for board-to-board interconnect applications. This through-hole male pin header uses gold GXT contact finish at 30.0µin (0.76µm) on the mating surface, rated for 5A per circuit at 110V.

The 0.100" pitch and single-row 36-position layout define the board footprint — a 36-pin through-hole pattern at 2.54mm centers. The 5A per-circuit rating at 110V is typical for signal-level power distribution on a BERGSTIK header; the actual current limit in an assembly depends on the number of simultaneously loaded circuits and the ambient temperature, but the contact material and plating are not the bottleneck at this rating.

Mating & Termination

Termination is through-hole solder, with a 0.100" (2.54mm) post length below the insulator and a 0.225" (5.72mm) mating pin length.

Frequently asked questions

What is the replacement for 75160-101-36LF?

No official replacement order code is recorded for the 75160-101-36LF. A pin-compatible alternative would need to be sourced from the same BERGSTIK series — matching the 0.100" pitch, 36 positions, single row, through-hole, and unshrouded header type.

Does 75160-101-36LF have a gold plating thickness?

Yes, the contact finish on the mating side is gold GXT with a thickness of 30.0µin (0.76µm).

What is the operating temperature of 75160-101-36LF?

The operating temperature range is -65°C to 130°C.
