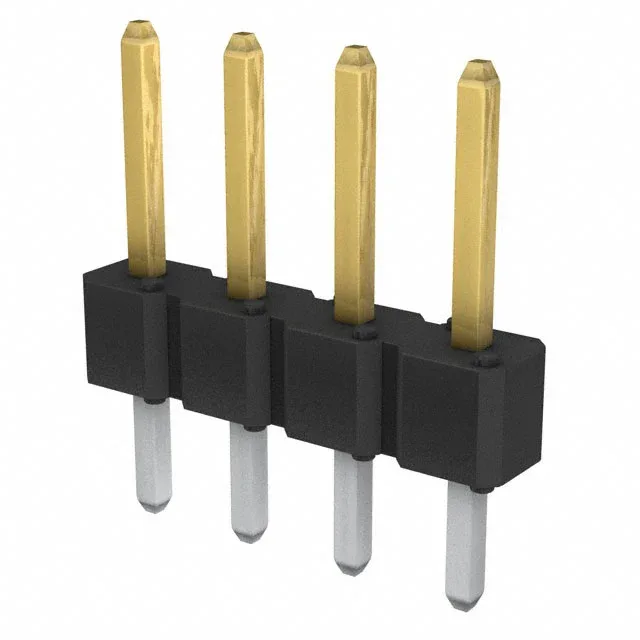

The 0.100" (2.54 mm) pitch matches the standard breadboard and proto-grid spacing, so it drops into a common footprint without a custom layout. Rated 5 A per contact at 110 V, with a 30.0 µin gold GXT™ finish on the mating surface — that plating thickness handles repeated mating cycles and resists corrosion in environments where tin would frett.
Where it fits and what it mates with
Unshrouded, push-pull fastening — no latch, no keying. It mates with any standard 0.100" pitch single-row receptacle or female header that accepts 0.025" square pins. The 0.230" (5.84 mm) mating pin length gives good wipe before bottoming out. Through-hole solder tails at 0.135" (3.43 mm) post length suit standard 1.6 mm PCBs. The UL94 V-0 thermoplastic housing and -65°C to 130°C operating range mean it holds up in industrial cabinets and automotive underhood locations where the board sees temperature cycling.
