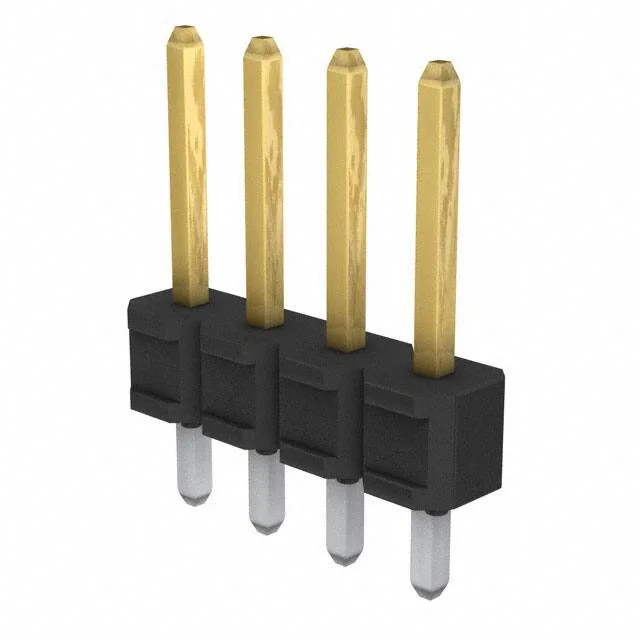

The FCI / Amphenol 75160-127-04LF is a 4-position unshrouded BergStik® male pin header on a 0.100" (2.54mm) pitch, single-row layout. The 30.0µin (0.76µm) GXT™ gold plating on the mating surface handles repeated insertion cycles without fretting corrosion, while the UL94 V-0 thermoplastic housing suits equipment inside enclosures requiring a flame rating. Typical applications include signal-level board stacking, peripheral card headers, and test-point breakouts where a low-profile unshrouded pin strip is needed.
At 5 A per circuit, the 4-position header carries a total of 20 A distributed across the row, but the real-world derating depends on the number of adjacent circuits carrying current simultaneously and the ambient temperature inside the enclosure. The square 0.025" (0.64mm) pin cross-section is the standard BergStik profile, compatible with the full range of BergStik female socket strips and IDC connectors.
The 0.105" (2.67mm) solder post length is sized for standard 0.062" (1.6mm) PCBs; for thicker boards, verify the post protrudes through the plated hole for a proper solder fillet. Termination is through-hole solder only — no press-fit or SMT option.
