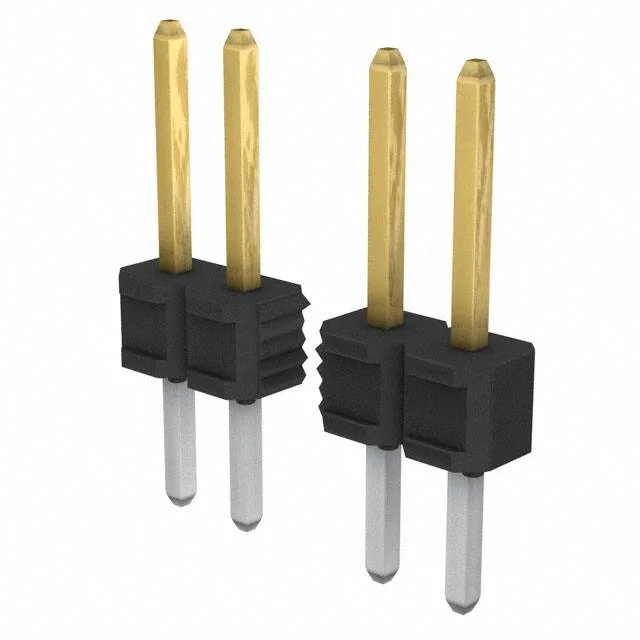

Amphenol ICC 75160-128-09LF BERGSTIK Header, 9 Pos

MPN75160-128-09LF
Active

Amphenol ICC BERGSTIK® Series, 75160-128-09LF, Board to Board Header, 9 Positions, 1 Row, 0.100" (2.54mm) Pitch, Through Hole, Solder Termination, Gold GXT Mating Finish.

$0.8226Ref. price · indicative, final on quote
75160-128-09LF datasheet
StockContact for availability
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

75160-128-09LF Technical Specifications
ParameterValue
SeriesBERGSTIK®
GenderMale Pin
Mounting typeThrough Hole
Connector typeHeader
Fastening typePush-Pull
Voltage rating110V
Current rating5A
Operating temperature-65°C~130°C
Contact materialPhosphor Bronze
Insulation colorBlack
Insulation height0.100\" (2.54mm)
Insulation materialThermoplastic
Material flammability ratingUL94 V-0
StyleBoard to Board
PackageBulk
ShroudingUnshrouded
TerminationSolder
Contact shapeSquare
Rows1
Pitch0.100\" (2.54mm)
Positions9
Contact length - post0.165\" (4.19mm)
Overall contact length0.525\" (13.34mm)
Contact finish - matingGold, GXT™
Contact length - mating0.260\" (6.60mm)
Contact finish thickness - mating30.0µin (0.76µm)

Product details

Board Layout and Fit

With a single row of 9 pins on 0.100" centers, the board footprint is narrow — about 0.900" long plus the keep-out for the 0.100" (2.54mm) insulation height. The through-hole solder tails extend 0.165" (4.19mm) below the board surface, which is standard for 0.062" thick PCBs with plated through-holes. The overall contact length of 0.525" (13.34mm) and a mating pin length of 0.260" (6.60mm) give enough reach for stacking with a standard receptacle without bottoming out.

There is no official replacement or cross-reference on record; the 9-position single-row configuration is the exact fit for the circuit count specified.

Frequently asked questions

How many rows does the 75160-128-09LF have?

It is a single-row header — 1 row of 9 positions.

Can the 75160-128-09LF be used in board-to-board applications?

Yes, the connector is listed with a Board to Board style and mates with the matching BERGSTIK receptacle for stacking or parallel board connections.
