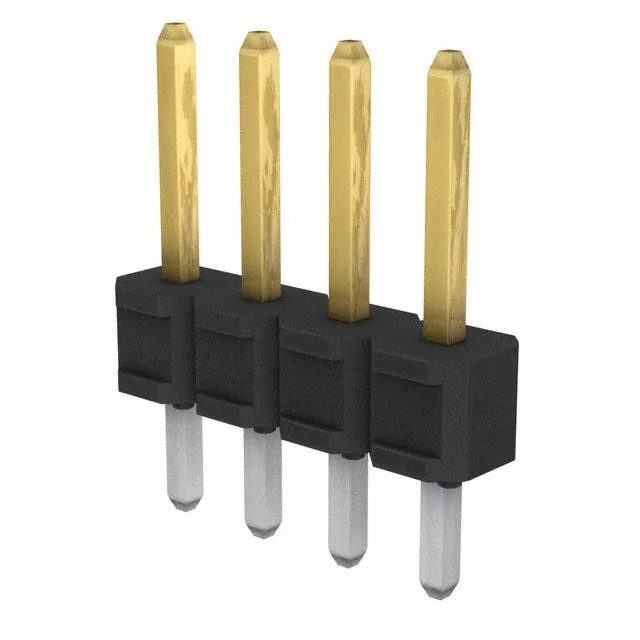

Amphenol ICC (FCI) BERGSTIK header, order code 75160-150-04LF, 4 positions, single row, 0.100" (2.54 mm) pitch, 5 A, 110 V, unshrouded, through hole, solder termination, GXT gold-plated mating contacts.
| Parameter | Value |
|---|---|
| Series | BERGSTIK® |
| Type | Male Pin |
| Mounting | Through Hole |
| Connector type | Header |
| Fastening type | Push-Pull |
| Voltage rating | 110V |
| Current rating | 5A |
| Operating temperature | -65°C~130°C |
| Contact material | Phosphor Bronze |
| Insulation color | Black |
| Insulation height | 0.100\" (2.54mm) |
| Insulation material | Thermoplastic |
| Parameter | Value |
|---|---|
| Material flammability rating | UL94 V-0 |
| Style | Board to Board |
| Package | Bag |
| Shrouding | Unshrouded |
| Termination | Solder |
| Contact shape | Square |
| Rows | 1 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 4 |
| Contact length - post | 0.123\" (3.12mm) |
| Overall contact length | 0.453\" (11.50mm) |
| Contact finish - mating | Gold, GXT™ |
| Contact length - mating | 0.230\" (5.84mm) |
| Contact finish thickness - mating | 30.0µin (0.76µm) |
The 75160-150-04LF: GXT gold-plated square pins rated 5 A at 110 V, through-hole solder termination, push-pull fastening.
The unshrouded push-pull interface suits low-vibration board-to-board duty where the mating half aligns mechanically before the pins engage.
The 75160-150-04LF is listed as a Board to Board style header.
RoHS and REACH compliance documentation is provided by Amphenol ICC (FCI) for the BERGSTIK series.
