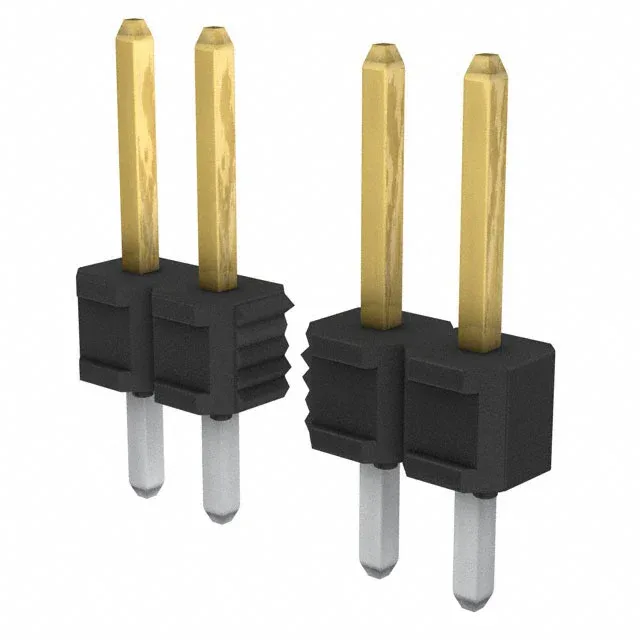

The FCI BERGSTIK® 75160-150-36LF is a 36-position, single-row unshrouded header on 0.100" (2.54mm) pitch. It's a straight through-hole male pin header designed for board-to-board stacking — the unshrouded profile keeps the footprint compact and gives you access to the pins for probing or wire wrapping if needed. The 5 A rating is standard for this pitch class — the limiting factor is the pin density and the PCB trace width, not the contact itself. That's a hard gold alloy — it stands up to repeated mating cycles better than soft gold or tin, and it resists corrosion in environments where the connector isn't sealed.
FCI BERGSTIK® unshrouded header, 36 positions, single row, 0.100" (2.54mm) pitch, through hole, male pin, gold GXT™ plating, 5A, 110V.
$5.9500Ref. price · indicative, final on quote
StockContact for availability
Lead timeIn Stock wk
MOQ1 pcs
- New & original stockTraceable channels only — no mixed lots, no re-taped reels.
- Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
- Photo-verified countsEvery line counted and photographed before the box closes.
- PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
Specifications
| Parameter | Value |
|---|---|
| Series | BERGSTIK® |
| Gender | Male Pin |
| Mounting type | Through Hole |
| Connector type | Header |
| Fastening type | Push-Pull |
| Voltage rating | 110V |
| Current rating | 5A |
| Operating temperature | -65°C~130°C |
| Contact material | Phosphor Bronze |
| Insulation color | Black |
| Insulation height | 0.100\" (2.54mm) |
| Insulation material | Thermoplastic |
| Material flammability rating | UL94 V-0 |
| Style | Board to Board |
| Package | Bulk |
| Shrouding | Unshrouded |
| Termination | Solder |
| Contact shape | Square |
| Rows | 1 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 36 |
| Contact length - post | 0.123\" (3.12mm) |
| Overall contact length | 0.453\" (11.50mm) |
| Contact finish - mating | Gold, GXT™ |
| Contact length - mating | 0.230\" (5.84mm) |
| Contact finish thickness - mating | 30.0µin (0.76µm) |
