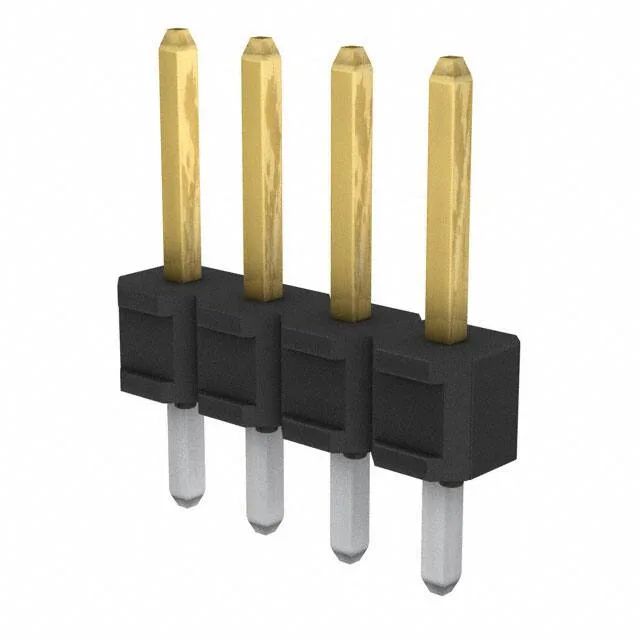

Amphenol ICC (FCI) BERGSTIK header, order code 75160-156-04LF, 4 positions, single row, 0.100" (2.54 mm) pitch, 5 A, 110 V, gold GXT-plated male pins, through-hole solder termination.
Amphenol ICC (FCI) BERGSTIK header, order code 75160-156-04LF, 4 positions, single row, 0.100" (2.54 mm) pitch, 5 A, 110 V, gold GXT-plated male pins, through-hole solder termination.
$0.6241Ref. price · indicative, final on quote
StockContact for availability
Lead timeIn Stock wk
MOQ1 pcs
- New & original stockTraceable channels only — no mixed lots, no re-taped reels.
- Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
- Photo-verified countsEvery line counted and photographed before the box closes.
- PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
Specifications
| Parameter | Value |
|---|---|
| Series | BERGSTIK® |
| Gender | Male Pin |
| Mounting type | Through Hole |
| Connector type | Header |
| Fastening type | Push-Pull |
| Voltage rating | 110V |
| Current rating | 5A |
| Operating temperature | -65°C~130°C |
| Contact material | Phosphor Bronze |
| Insulation color | Black |
| Insulation height | 0.100\" (2.54mm) |
| Insulation material | Thermoplastic |
| Material flammability rating | UL94 V-0 |
| Style | Board to Board |
| Package | Bulk |
| Shrouding | Unshrouded |
| Termination | Solder |
| Contact shape | Square |
| Rows | 1 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 4 |
| Contact length - post | 0.120\" (3.05mm) |
| Overall contact length | 0.445\" (11.30mm) |
| Contact finish - mating | Gold, GXT™ |
| Contact length - mating | 0.225\" (5.72mm) |
| Contact finish thickness - mating | 30.0µin (0.76µm) |
Product details
Frequently asked questions
What is the closest pin-compatible alternative in the BERGSTIK series?
No same-series peer with a different position count at the same pitch is on record for this exact part.
What compliance documentation does Amphenol ICC provide for this header?
RoHS and REACH compliance documentation is available from the manufacturer; no specific certification numbers are listed in the product record.
