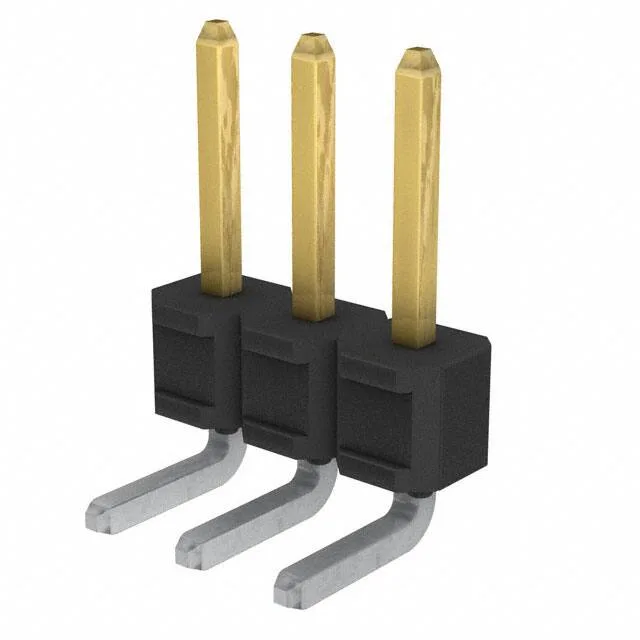

Amphenol ICC (FCI) BERGSTIK® header, order code 75168-101-03LF, 3 positions, single row, 0.100" (2.54mm) pitch, gold GXT™ mating contacts, through-hole right-angle, solder termination.
| Parameter | Value |
|---|---|
| Series | BERGSTIK® |
| Type | Male Pin |
| Mounting | Through Hole, Right Angle |
| Connector type | Header |
| Fastening type | Push-Pull |
| Contact material | Phosphor Bronze |
| Insulation color | Black |
| Insulation height | 0.110\" (2.79mm) |
| Insulation material | Thermoplastic |
| Material flammability rating | UL94 V-0 |
| Style | Board to Board |
| Package | Bulk |
| Parameter | Value |
|---|---|
| Shrouding | Unshrouded |
| Termination | Solder |
| Contact shape | Square |
| Rows | 1 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 3 |
| Contact length - post | 0.101\" (2.57mm) |
| Contact finish - mating | Gold, GXT™ |
| Contact length - mating | 0.225\" (5.72mm) |
| Contact finish thickness - mating | 30.0µin (0.76µm) |
The 75168-101-03LF is the 3-circuit member of Amphenol ICC's BERGSTIK® unshrouded header line, configured through-hole right-angle for board-edge routing.
Within the BERGSTIK 75168 series the 3-position 75168-101-03LF is the lowest circuit-count member — the pitch, unshrouded profile, and right-angle orientation are shared across the series, so match the position count to the circuit requirement.
