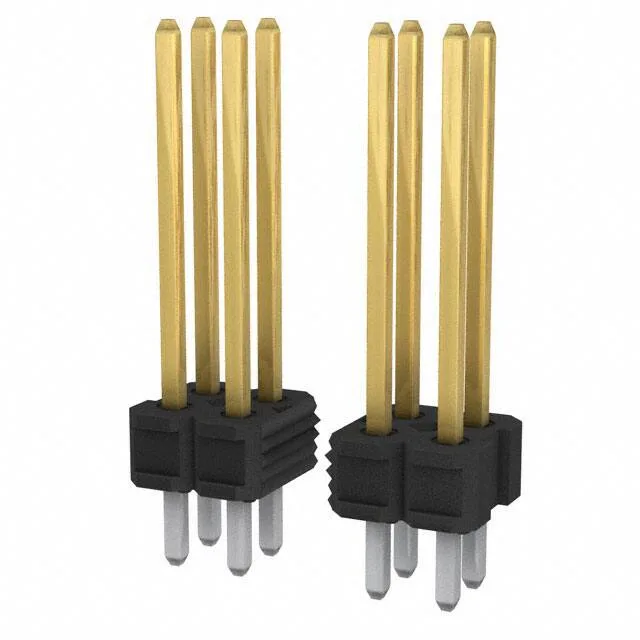

The Amphenol ICC BERGSTIK® 75844-119-72LF is a dual-row, 72-position unshrouded male header on a standard 0.100" (2.54 mm) pitch. The phosphor bronze contact material supports the flexure needed for reliable mating over the header's service life. The through-hole termination with 0.120" (3.05 mm) post length suits standard PCB thicknesses, and the overall contact length of 0.725" (18.42 mm) provides enough standoff for backplane or mezzanine-style stacking where the mating receptacle sits above the board.
Amphenol ICC BERGSTIK® 75844-119-72LF, dual-row 72-position unshrouded male header, 0.100" (2.54 mm) pitch, through-hole solder termination, gold GXT™ 30.0 µin contact plating, 5 A per circuit, 110 V, UL94 V-0.
$11.9962Ref. price · indicative, final on quote
StockContact for availability
Lead timeIn Stock wk
MOQ1 pcs
- New & original stockTraceable channels only — no mixed lots, no re-taped reels.
- Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
- Photo-verified countsEvery line counted and photographed before the box closes.
- PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
Specifications
| Parameter | Value |
|---|---|
| Series | BERGSTIK® |
| Gender | Male Pin |
| Mounting type | Through Hole |
| Connector type | Header, Breakaway |
| Fastening type | Push-Pull |
| Voltage rating | 110V |
| Current rating | 5A |
| Operating temperature | -65°C~130°C |
| Contact material | Phosphor Bronze |
| Insulation color | Black |
| Insulation height | 0.100\" (2.54mm) |
| Insulation material | Thermoplastic |
| Material flammability rating | UL94 V-0 |
| Style | Board to Board or Cable |
| Package | Bulk |
| Shrouding | Unshrouded |
| Termination | Solder |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 72 |
| Row spacing - mating | 0.100\" (2.54mm) |
| Contact length - post | 0.120\" (3.05mm) |
| Overall contact length | 0.725\" (18.42mm) |
| Contact finish - mating | Gold, GXT™ |
| Contact length - mating | 0.505\" (12.83mm) |
| Contact finish thickness - mating | 30.0µin (0.76µm) |
Product details
Frequently asked questions
What is the 75844-119-72LF's listed style?
Board to Board or Cable — a through-hole male header suited for board-to-board stacking or cable-level adapter termination.
